Catalog

Catalog

Wall Cabinet

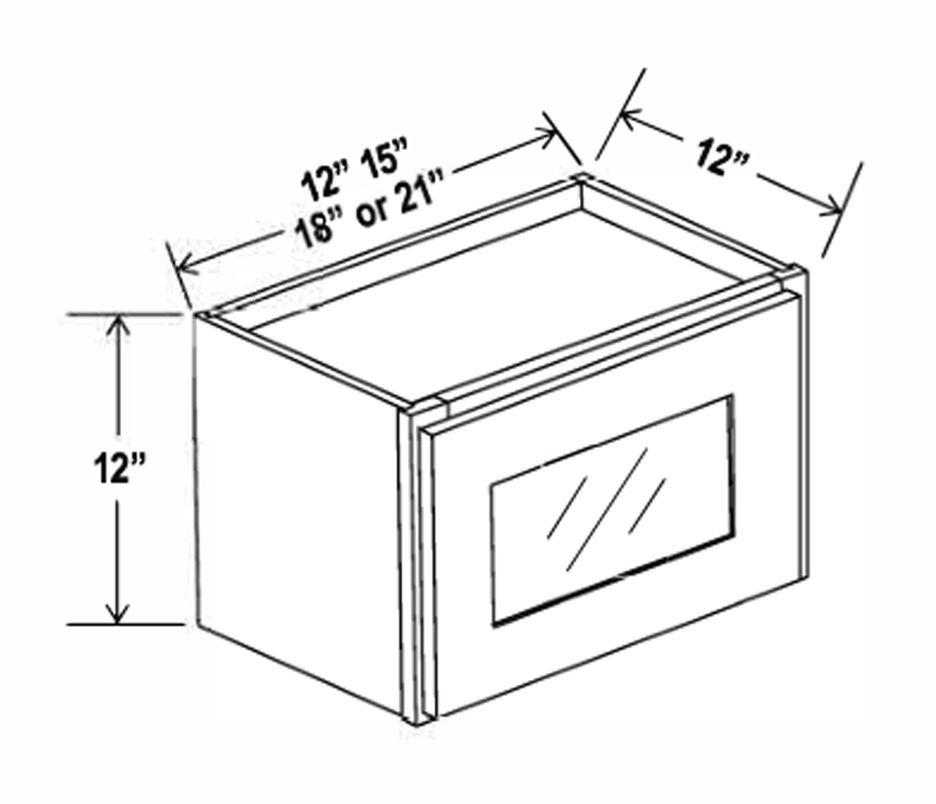

12"H Single Glass Door

  • Clear glass included
Item Code Parts W H D
W1212GD Cabinet 12 12 12
Door 11 1/2 11 3/4
W1512GD Cabinet 15 12 12
Door 14 1/2 11 3/4
W1812GD Cabinet 18 12 12
Door 17 1/2 11 3/4
W2112GD Cabinet 21 12 12
Door 20 1/2 11 3/4
12

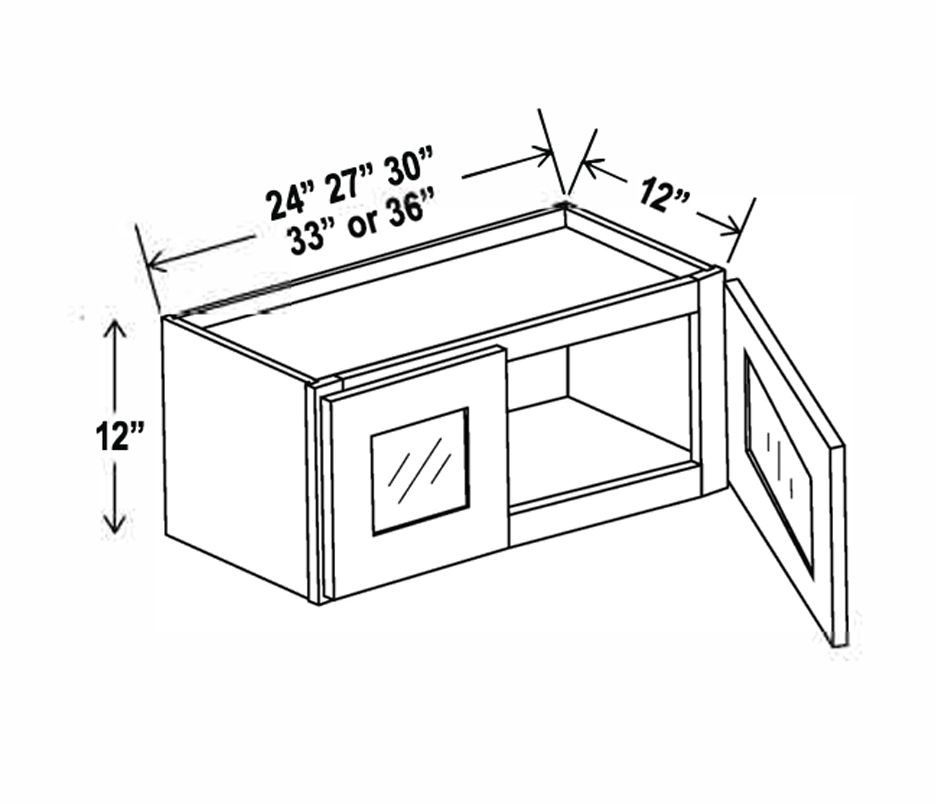

12"H Double Glass Doors

  • Clear glass included
Item Code Parts W H D
W2412GD Cabinet 24 12 12
Door 11 3/4 11 3/4
W2712GD Cabinet 27 12 12
Door 13 1/4 11 3/4
W3012GD Cabinet 30 12 12
Door 14 3/4 11 3/4
W3312GD Cabinet 33 12 12
Door 16 1/4 11 3/4
W3612GD Cabinet 36 12 12
Door 17 3/4 11 3/4
12

12"H Double Doors

  • No shelf
Item Code Parts W H D
W3012 Cabinet 30 12 12
Door 14 3/4 11 3/4
W3312 Cabinet 33 12 12
Door 16 1/4 11 3/4
W3612 Cabinet 36 12 12
Door 17 3/4 11 3/4
12

15"H Double Doors

  • No shelf
Item Code Parts W H D
W3015 Cabinet 30 15 12
Door 14 3/4 14 3/4
W3315 Cabinet 33 15 12
Door 16 1/4 14 3/4
W3615 Cabinet 36 15 12
Door 17 3/4 14 3/4
15

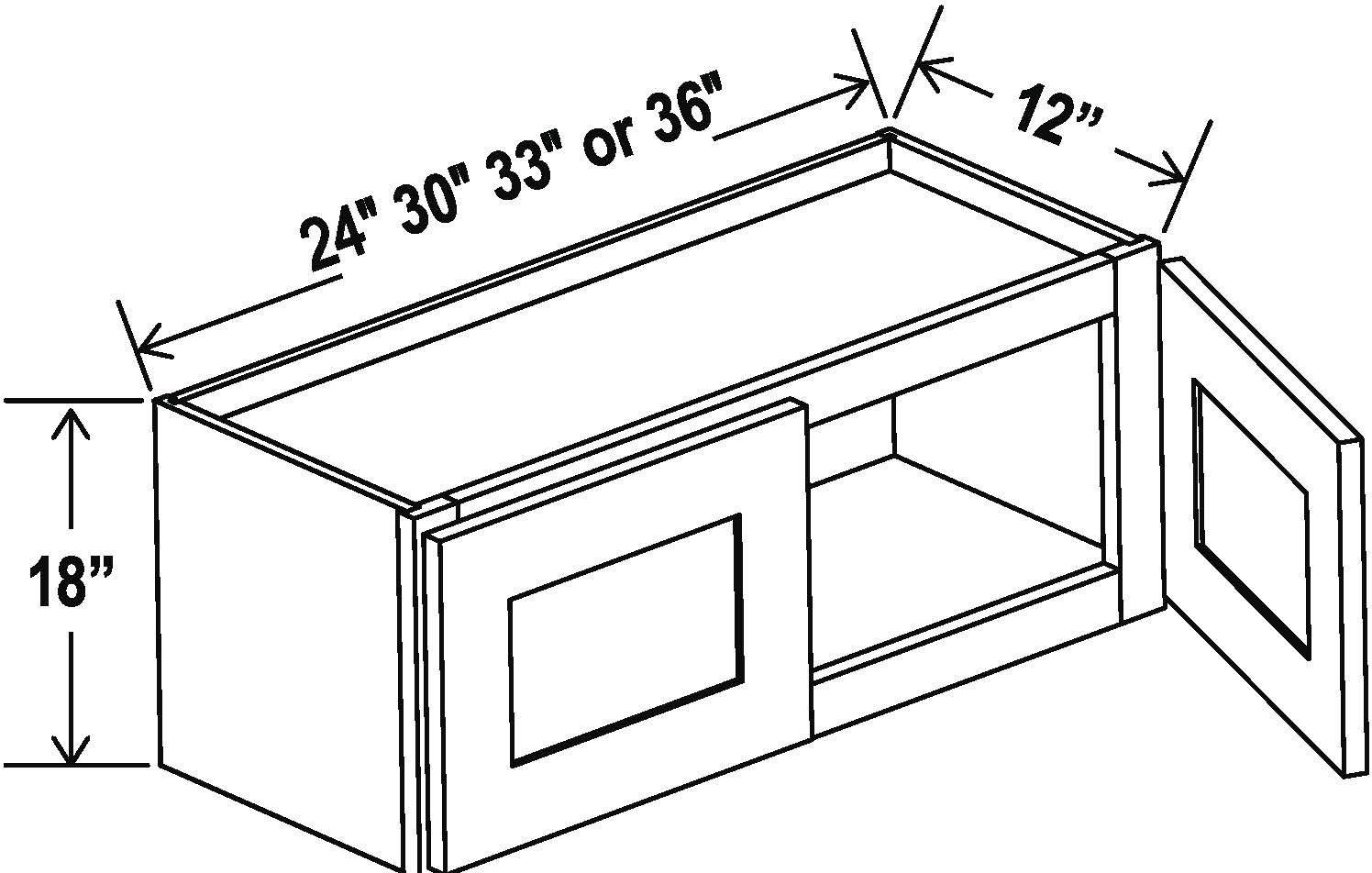

18"H Double Doors

  • No shelf
Item Code Parts W H D
W2418 Cabinet 24 18 12
Door 11 3/4 17 3/4
W3018 Cabinet 30 18 12
Door 14 3/4 17 3/4
W3318 Cabinet 33 18 12
Door 16 1/4 17 3/4
W3618 Cabinet 36 18 12
Door 17 3/4 17 3/4
18

18"H Double Glass Doors

  • Clear glass included
Item Code Parts W H D
W3QlBGD Cabinet 30 18 12
Door 14 3/4 17 3/4
18

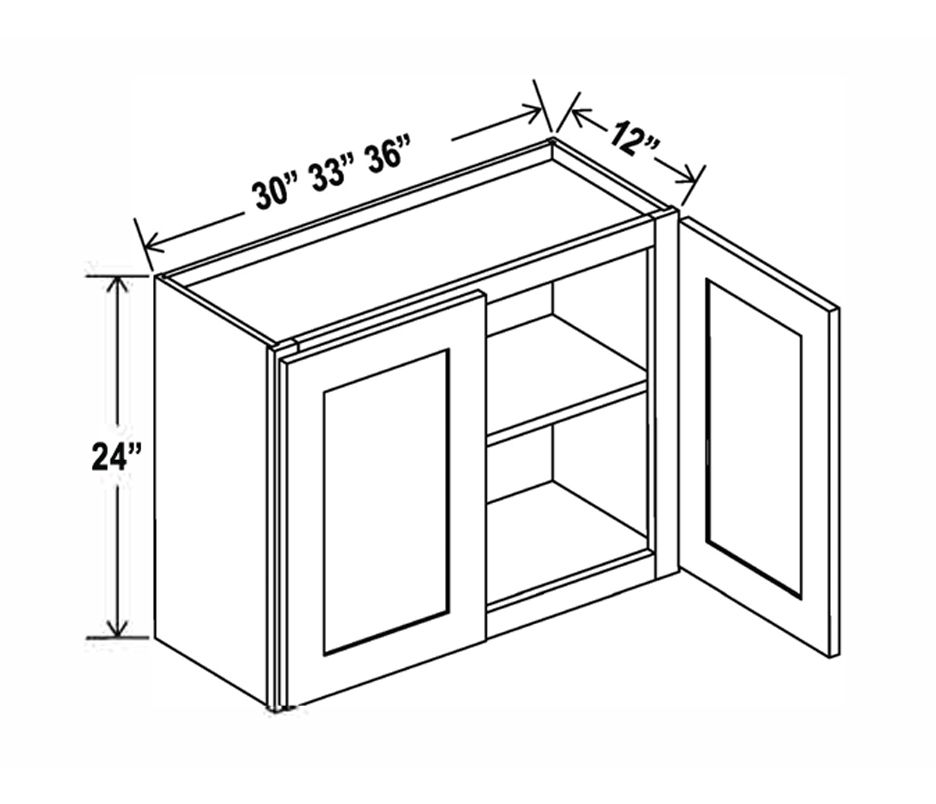

24"H Double Doors

  • One adjustable shelf
Item Code Parts W H D
W3024 Cabinet 30 24 12
Door 14 3/4 23 3/4
W3324 Cabinet 33 24 12
Door 16 1/4 23 3/4
W3624 Cabinet 36 24 12
Door 17 3/4 23 3/4
24

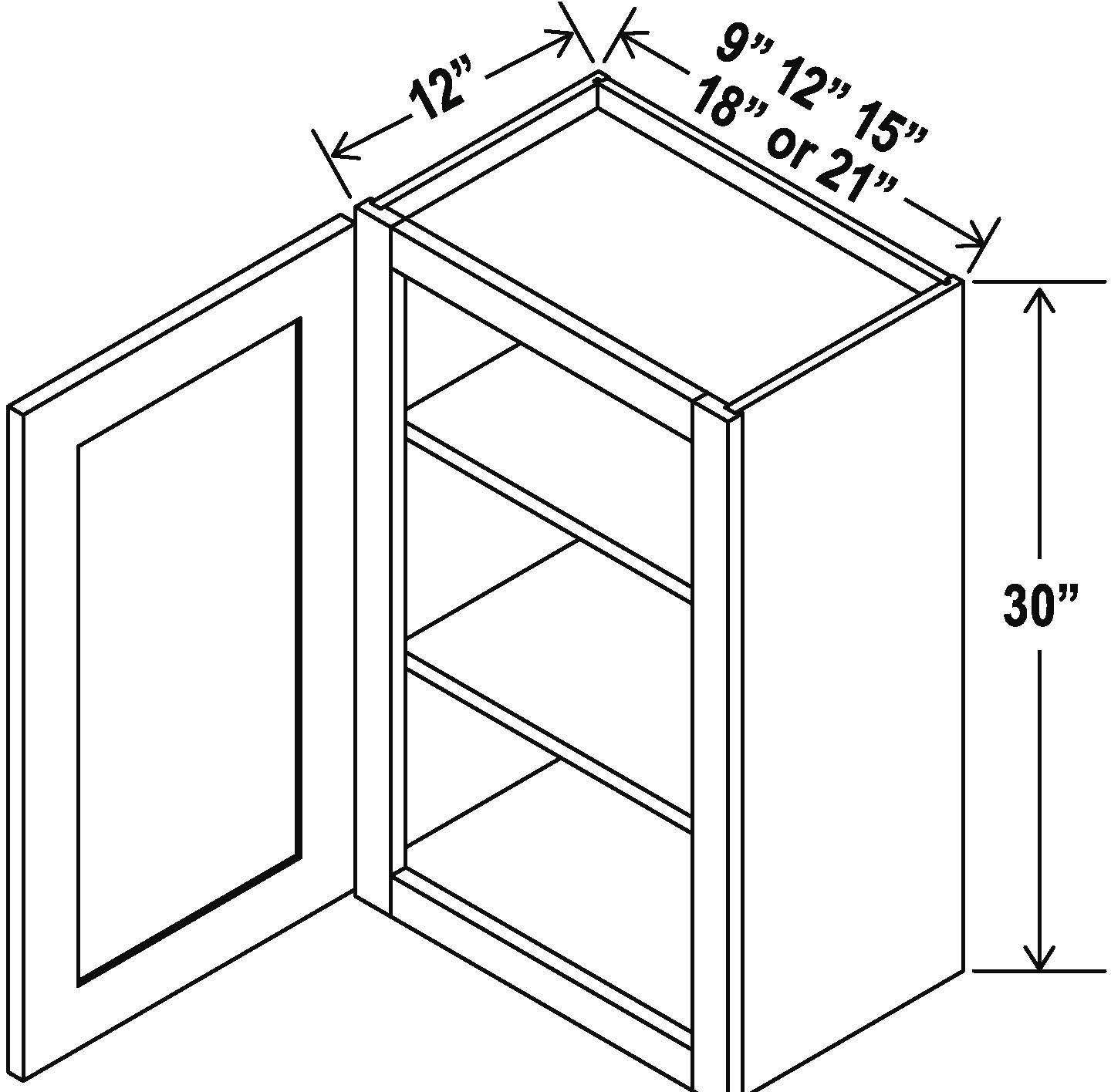

30"H Single Door

  • Two adjustable shelves
Item Code Parts W H D
W0930 Cabinet 9 30 12
Door 8 1/2 29 3/4
W1230 Cabinet 12 30 12
Door 11 1/2 29 3/4
W1530 Cabinet 15 30 12
Door 14 1/2 29 3/4
W1830 Cabinet 18 30 12
Door 17 1/2 29 3/4
W2130 Cabinet 21 30 12
Door 20 1/2 29 3/4
30

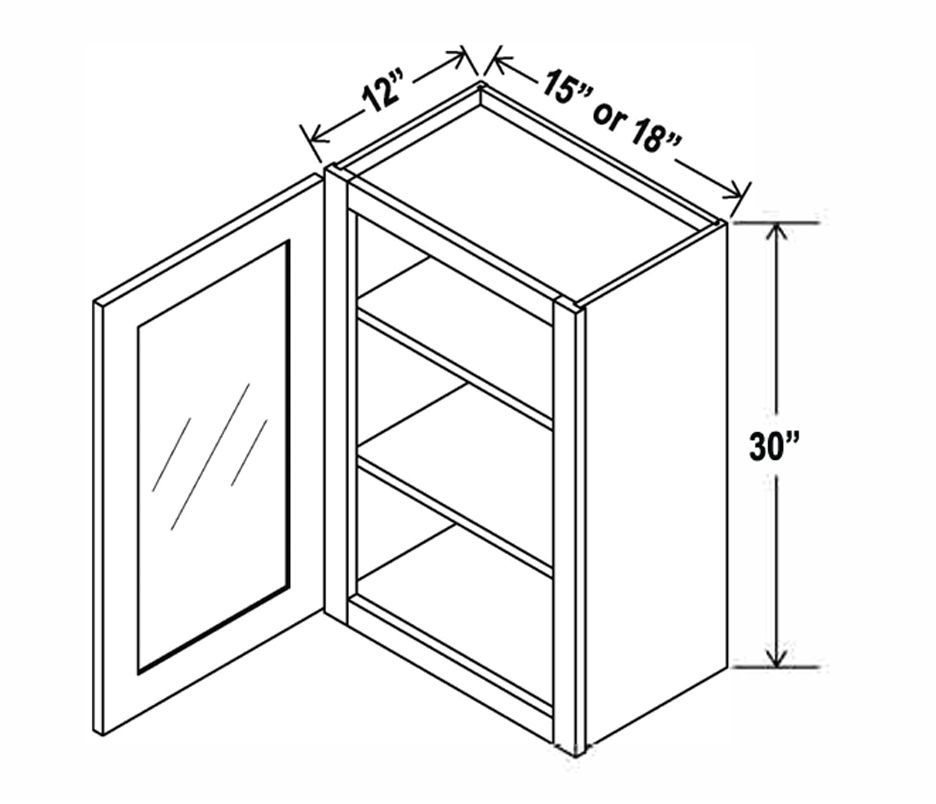

30"H Single Glass Door

  • Clear glass included
Item Code Parts W H D
W1530GD Cabinet 15 30 12
Door 14 1/2 29 3/4
W1830GD Cabinet 18 30 12
Door 17 1/2 29 3/4
30

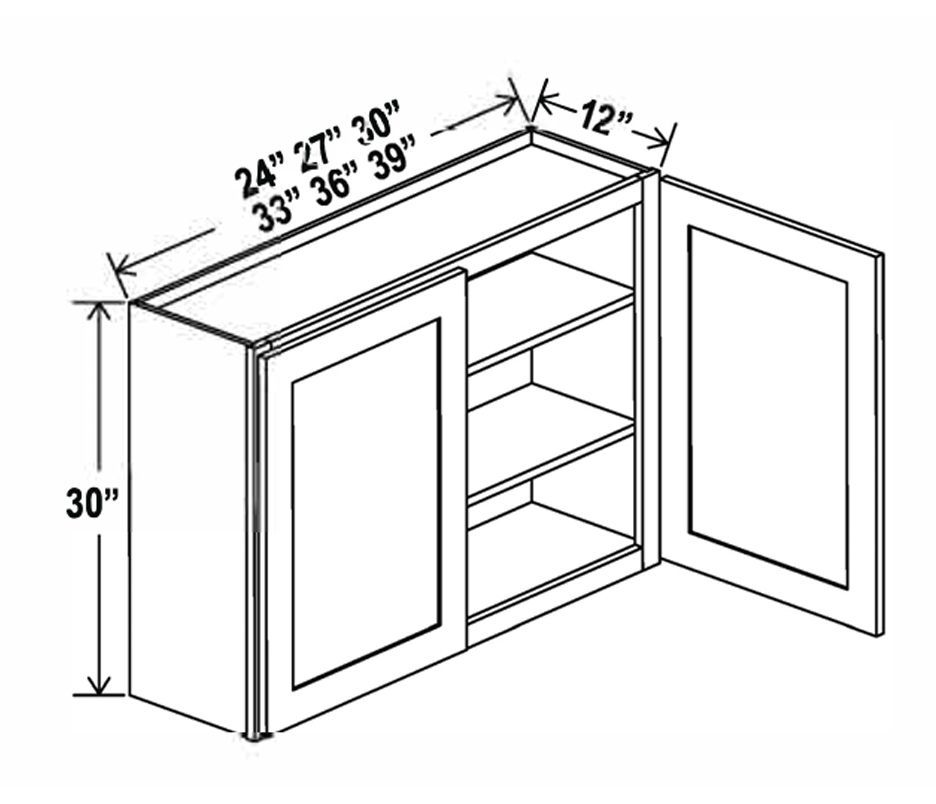

30"H Double Doors

  • Two adjustable shelves
Item Code Parts W H D
W2430 Cabinet 24 30 12
Door 11 3/4 29 3/4
W2730 Cabinet 27 30 12
Door 13 1/4 29 3/4
W3030 Cabinet 30 30 12
Door 14 3/4 29 3/4
W3330 Cabinet 33 30 12
Door 16 1/4 29 3/4
W3630 Cabinet 36 30 12
Door 17 3/4 29 3/4
W3930 Cabinet 39 30 12
Door 19 1/4 29 3/4
30

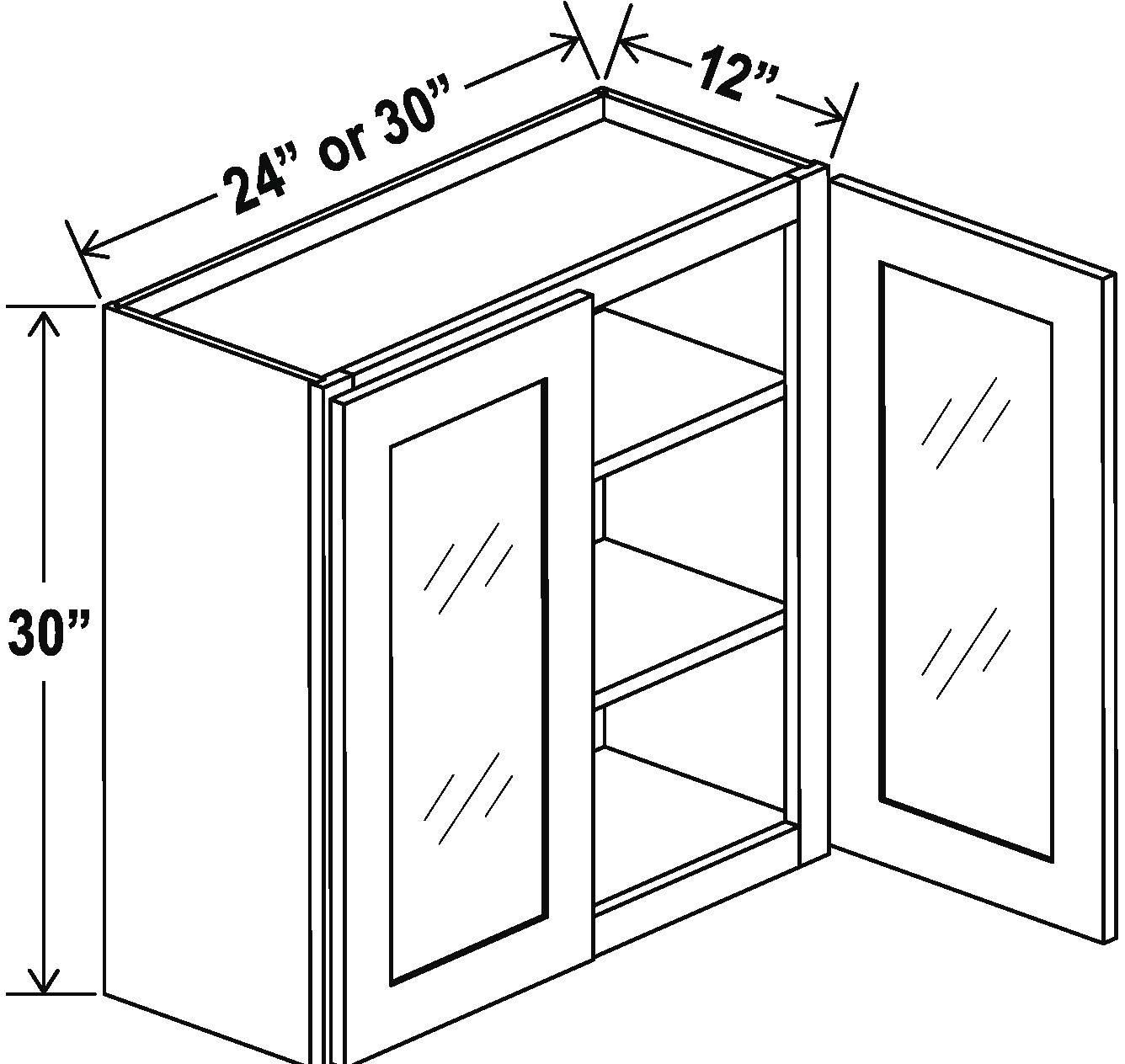

30"H Double Glass Doors

  • Clear glass included
Item Code Parts W H D
W2430GD Cabinet 24 30 12
Door 11 3/4 29 3/4
W3030GD Cabinet 30 30 12
Door 14 3/4 29 3/4
30

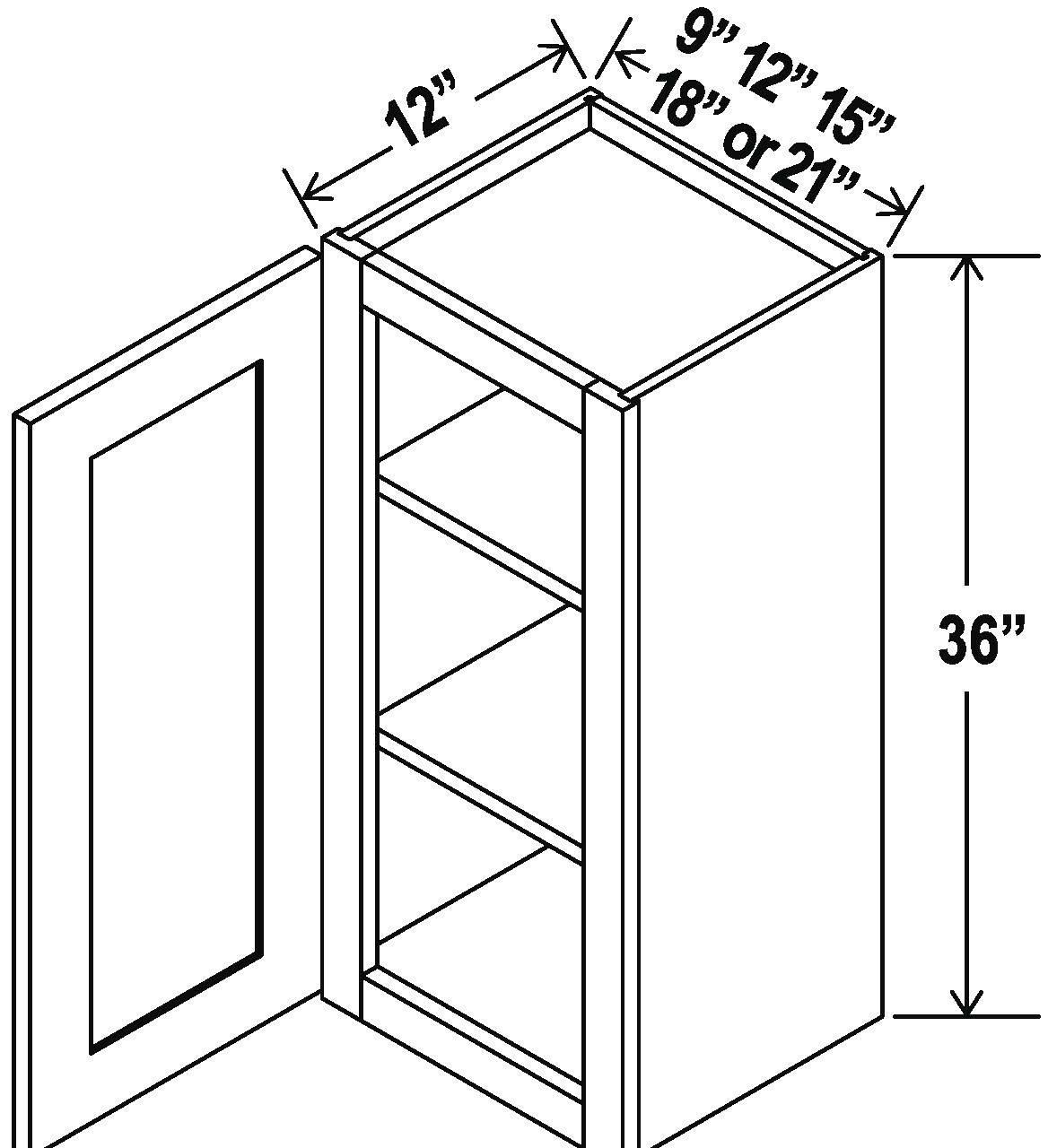

36"H Single Door

  • Two adjustable shelves
Item Code Parts W H D
W0936 Cabinet 9 36 12
Door 8 1/2 35 3/4
W1236 Cabinet 12 36 12
Door 11 1/2 35 3/4
W1536 Cabinet 15 36 12
Door 14 1/2 35 3/4
W1836 Cabinet 18 36 12
Door 17 1/2 35 3/4
W2136 Cabinet 21 36 12
Door 20 1/2 35 3/4
36

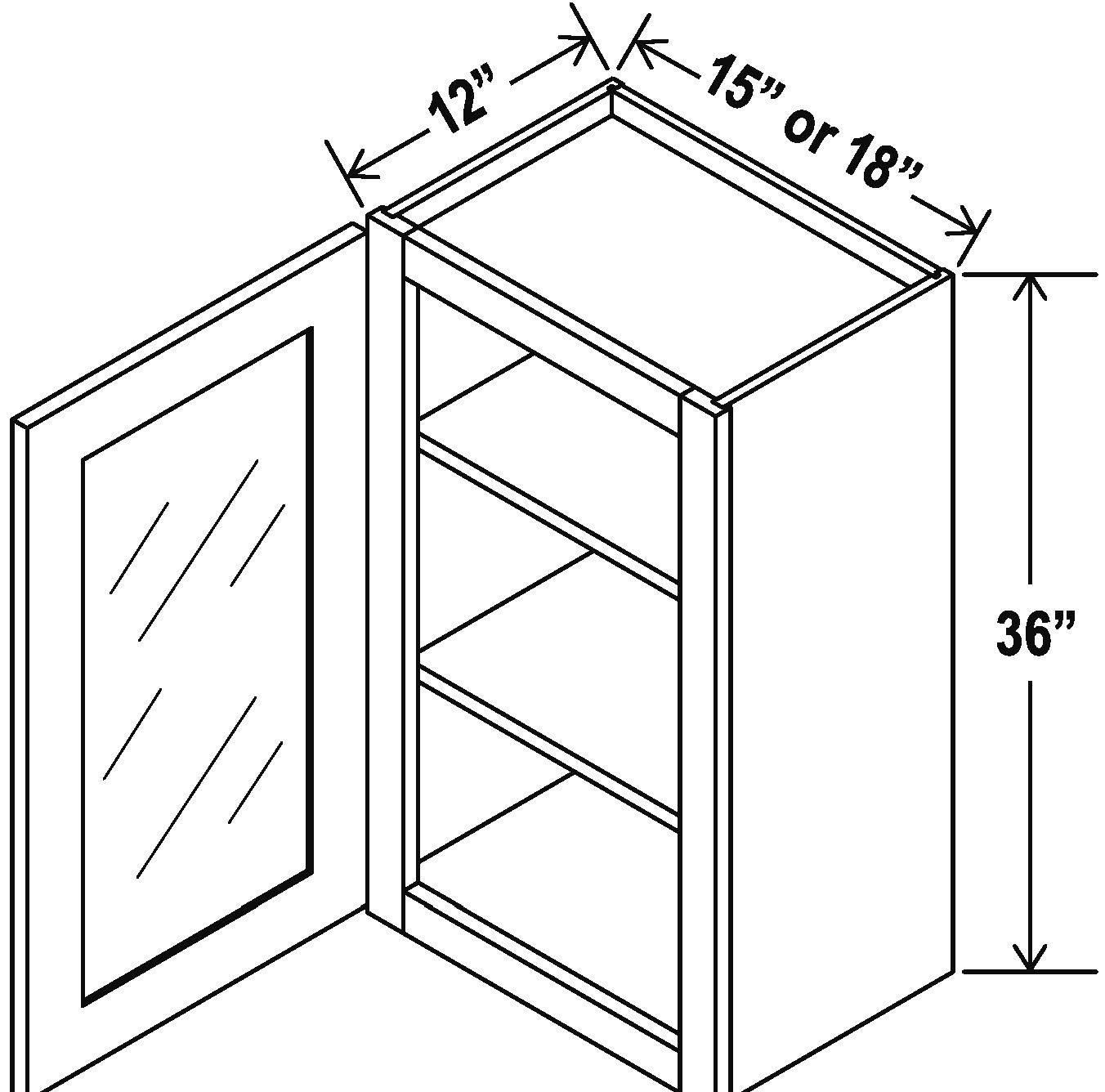

36"H Single Glass Door

  • Clear glass included
Item Code Parts W H D
W1536GD Cabinet 15 36 12
Door 14 1/2 35 3/4
W1836GD Cabinet 18 36 12
Door 17 1/2 35 3/4
36

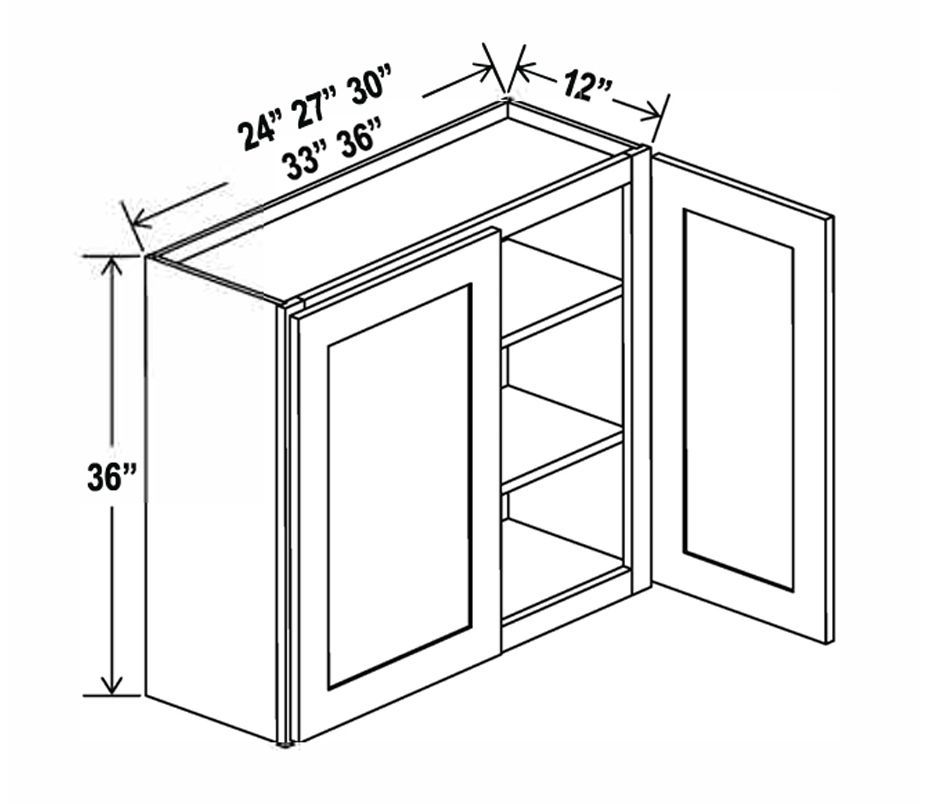

36"H Double Doors

  • Two adjustable shelves
Item Code Parts W H D
W2436 Cabinet 24 36 12
Door 11 3/4 35 3/4
W2736 Cabinet 27 36 12
Door 13 1/4 35 3/4
W3036 Cabinet 30 36 12
Door 14 3/4 35 3/4
W3336 Cabinet 33 36 12
Door 16 1/4 35 3/4
W3636 Cabinet 36 36 12
Door 17 3/4 35 3/4
36

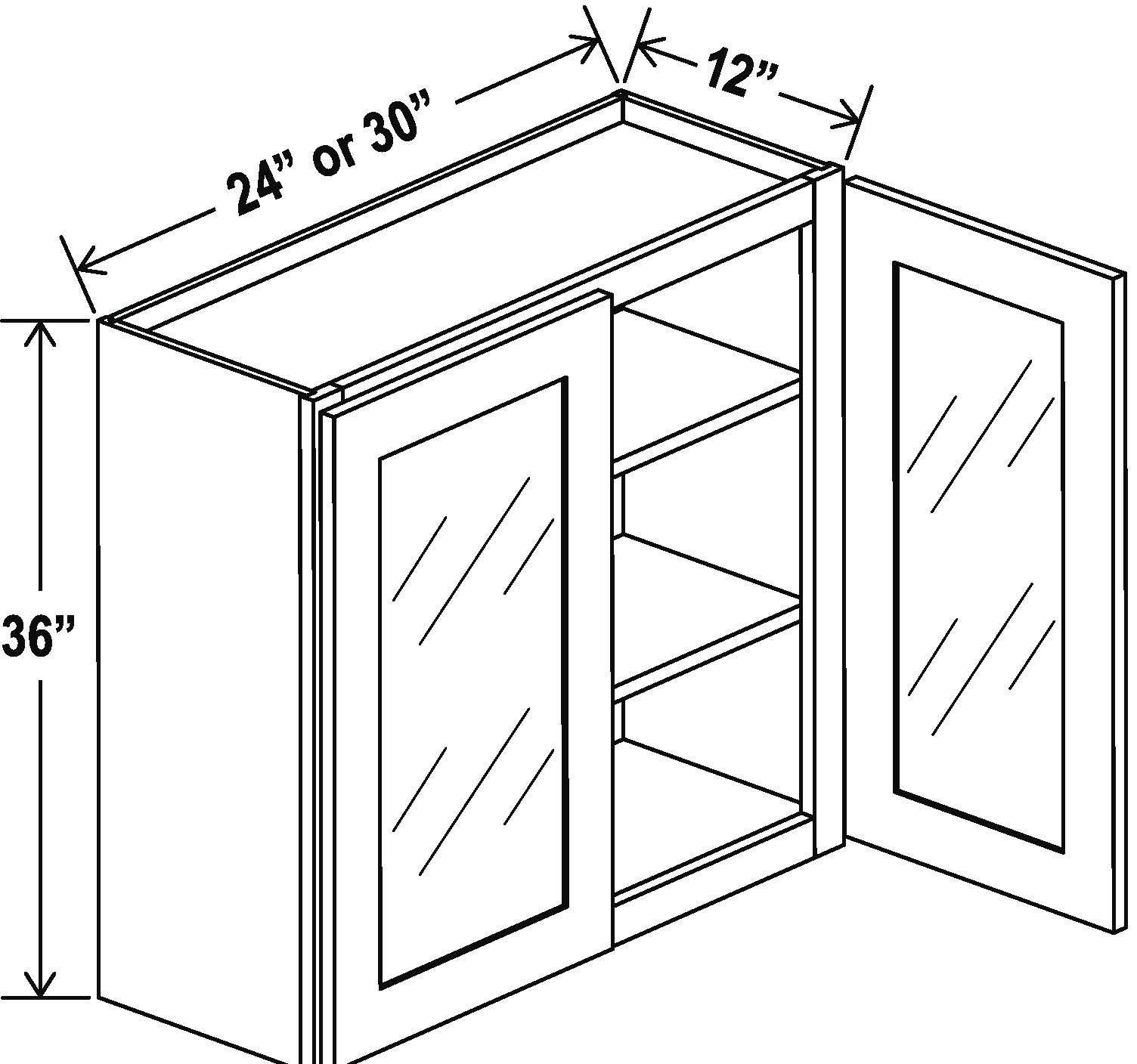

36"H Double Glass Doors

  • Clear glass included
Item Code Parts W H D
W2436GD Cabinet 24 36 12
Door 11 3/4 35 3/4
W3036GD Cabinet 30 36 12
Door 14 3/4 35 3/4
36

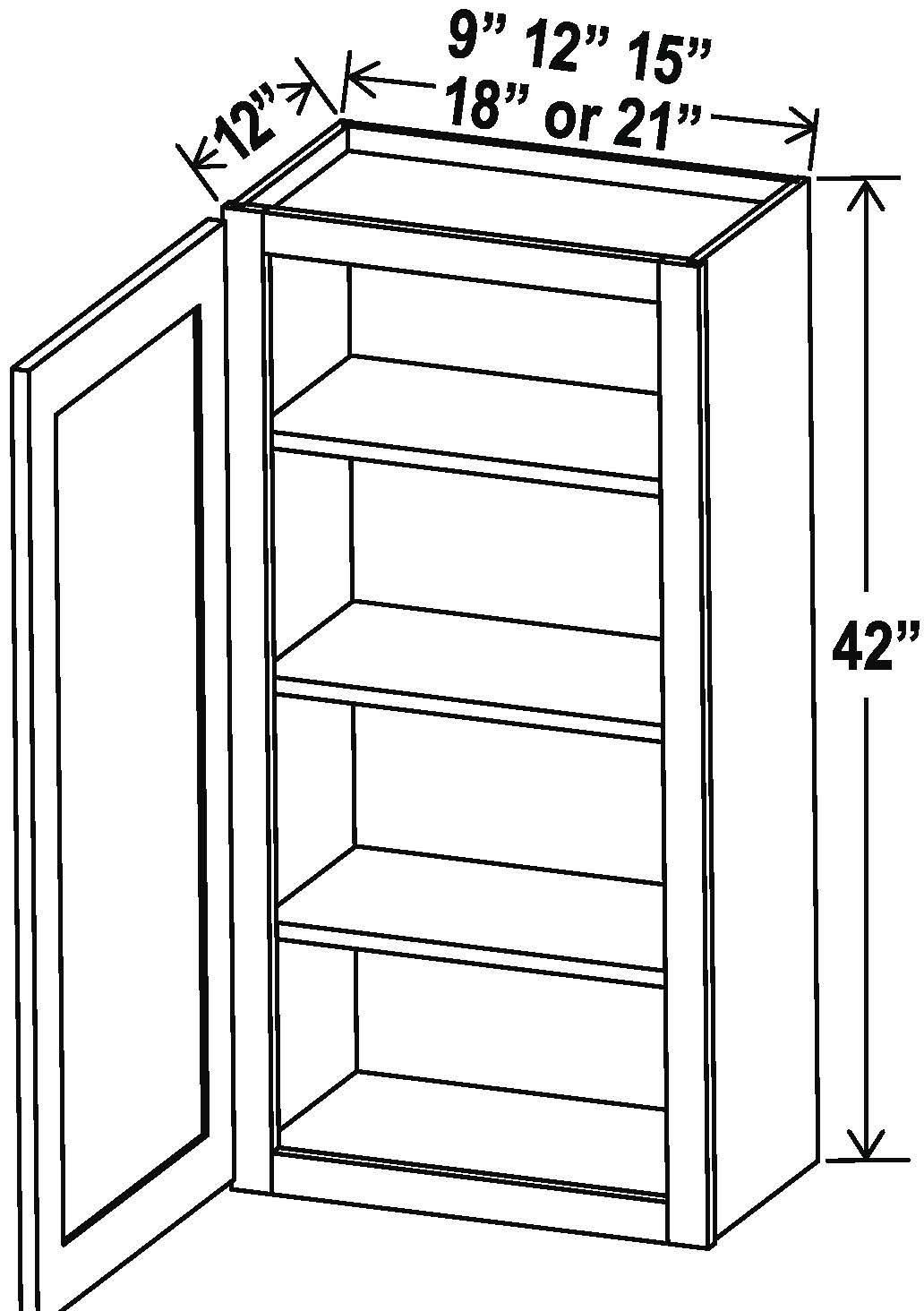

42"H Single Door

  • Three adjustable shelves
Item Code Parts W H D
W0942 Cabinet 9 42 12
Door 8 1/2 41 3/4
W1242 Cabinet 12 42 12
Door 11 1/2 41 3/4
W1542 Cabinet 15 42 12
Door 14 1/2 41 3/4
W1842 Cabinet 18 42 12
Door 17 1/2 41 3/4
W2142 Cabinet 21 42 12
Door 20 1/2 41 3/4
42

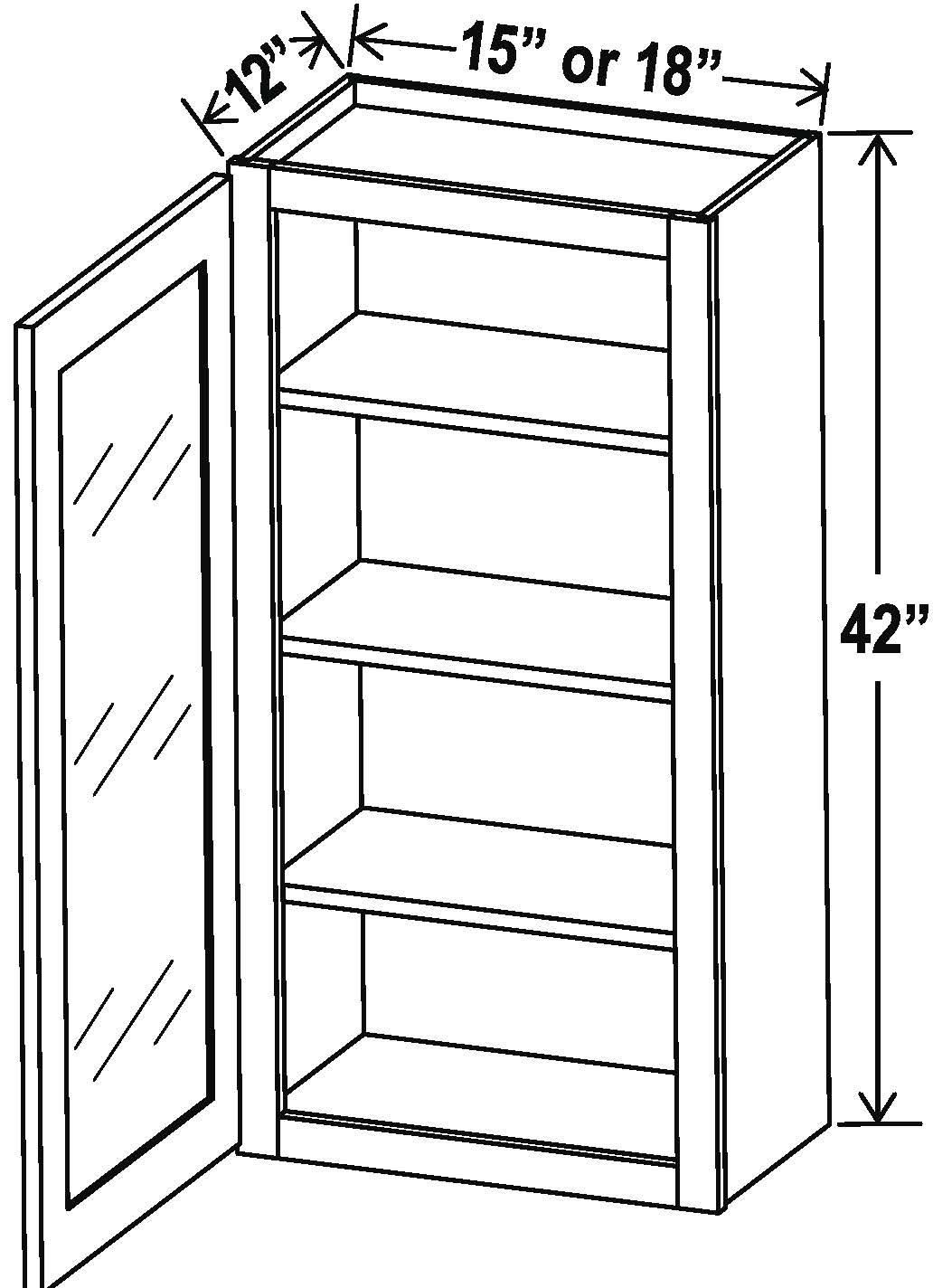

42"H Single Glass Door

  • Clear glass included
Item Code Parts W H D
W1542GD Cabinet 15 42 12
Door 14 1/2 41 3/4
W1842GD Cabinet 18 42 12
Door 17 1/2 41 3/4
42

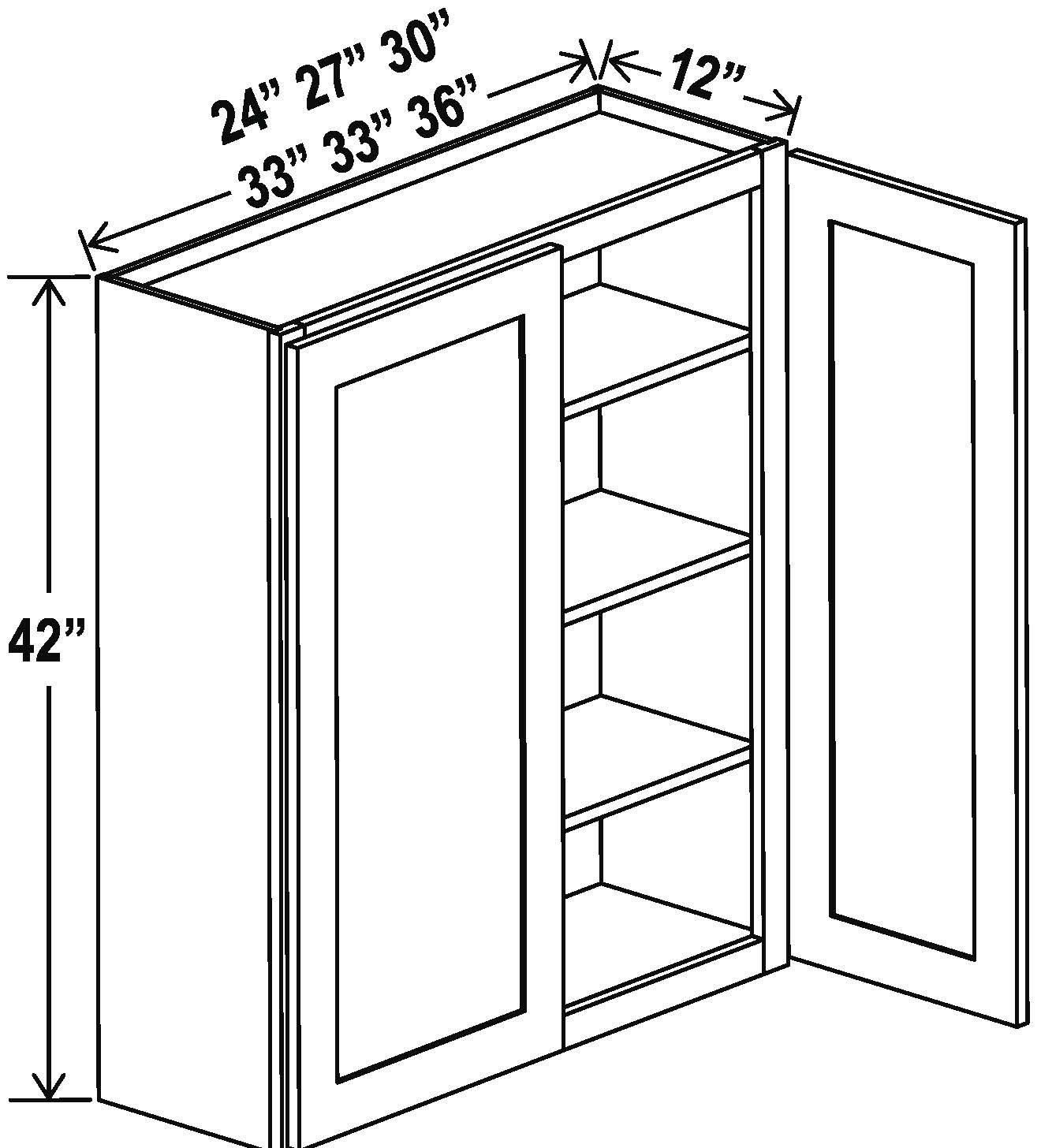

42"H Double Doors

  • Three adjustable shelves
Item Code Parts W H D
W2442 Cabinet 24 42 12
Door 11 3/4 41 3/4
W2742 Cabinet 27 42 12
Door 13 1/4 41 3/4
W3042 Cabinet 30 42 12
Door 14 3/4 41 3/4
W3342 Cabinet 33 42 12
Door 16 1/4 41 3/4
W3642 Cabinet 36 42 12
Door 17 3/4 41 3/4
42

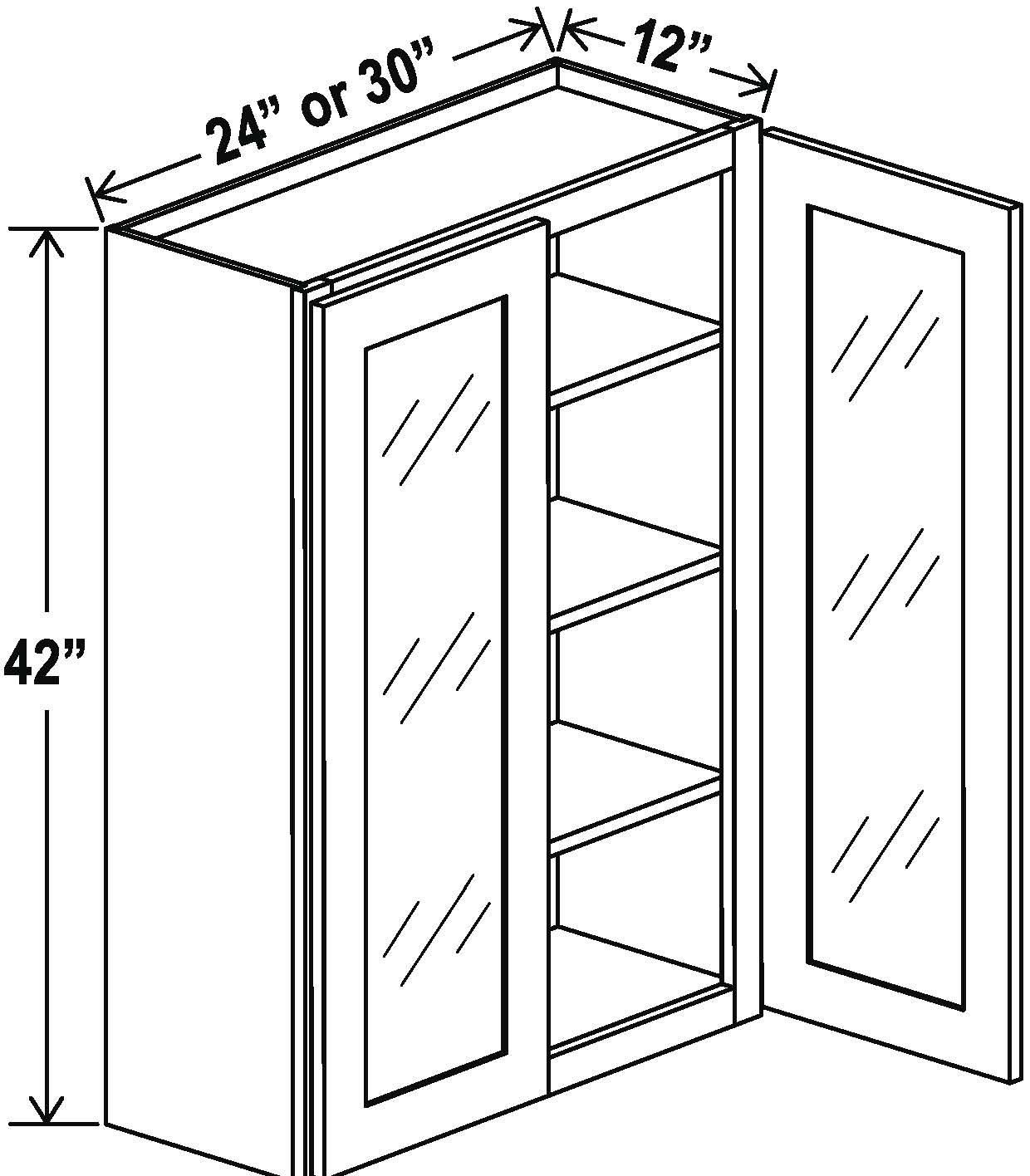

42"H Double Glass Doors

  • Clear glass included
Item Code Parts W H D
W2442GD Cabinet 24 42 12
Door 11 3/4 41 3/4
W3042GD Cabinet 30 42 12
Door 14 3/4 41 3/4
42

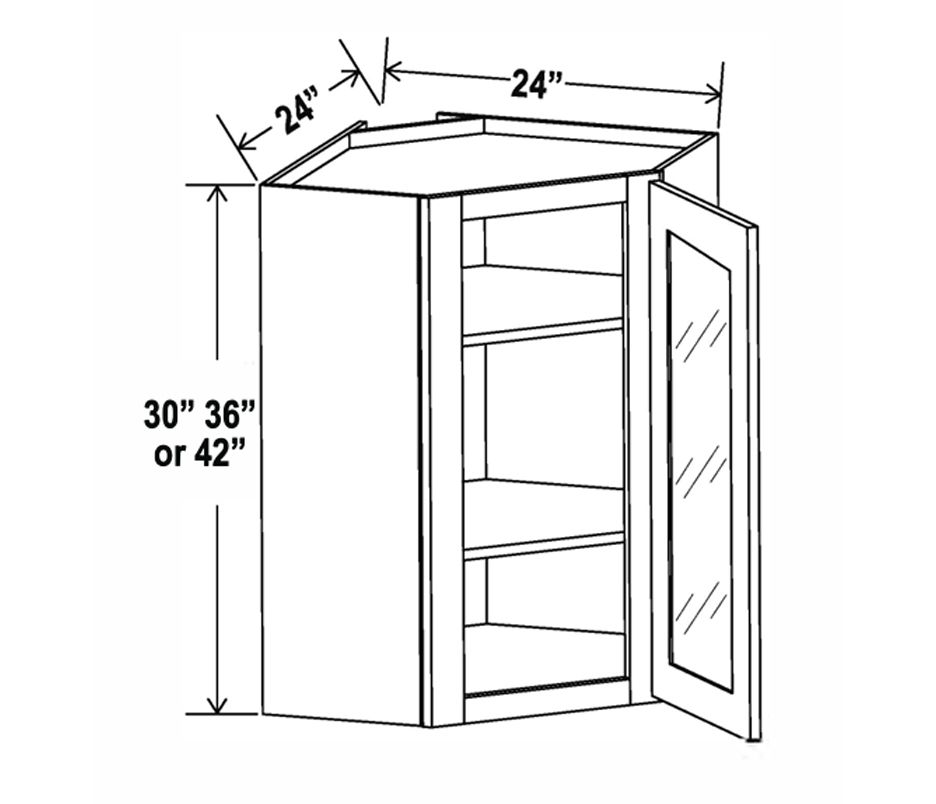

Diagonal Corner Wall Cabinet

24

24"W Glass Door

  • Clear glass included
Item Code Parts W H D
DCW2430GC Cabinet 24 30 12
Door 15 1/4 29 3/4
DCW2436GC Cabinet 24 36 12
Door 15 1/4 35 3/4
DCW2442GC Cabinet 24 42 12
Door 15 1/4 41 3/4
24

24"W Glass Door

  • Clear glass included
Item Code Parts W H D
DCW2430 Cabinet 24 30 12
Door 15 1/4 29 3/4
DCW2436 Cabinet 24 36 12
Door 15 1/4 35 3/4
DCW2442 Cabinet 24 42 12
Door 15 1/4 41 3/4
24

24"W Glass Door

  • Clear glass included
Item Code Parts W H D
DCW2430 Cabinet 24 30 12
Door 15 1/4 29 3/4
DCW2436 Cabinet 24 36 12
Door 15 1/4 35 3/4
DCW2442 Cabinet 24 42 12
Door 15 1/4 41 3/4
27

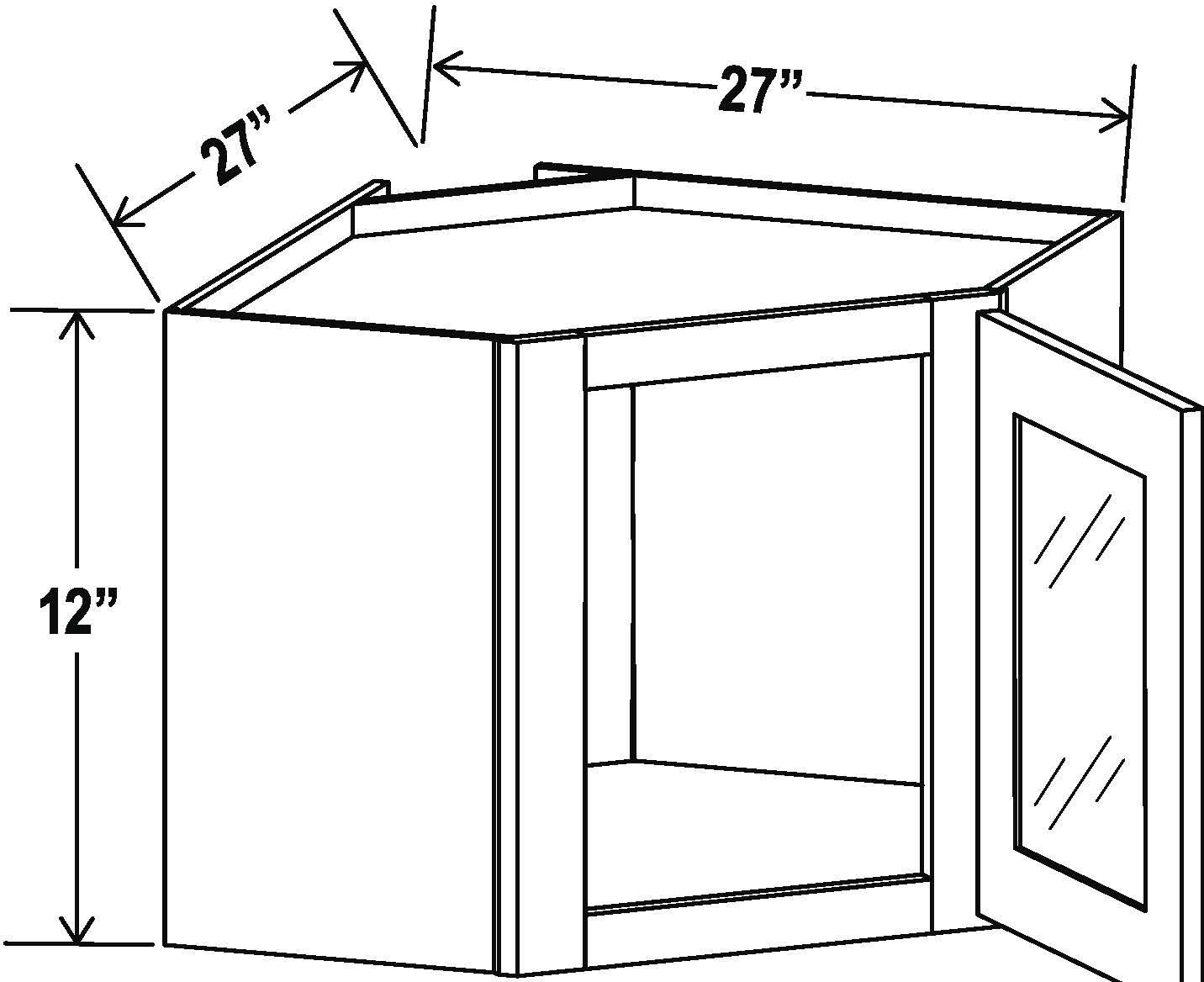

27"W Single Door

  • Clear glass included
Item Code Parts W H D
DCW2712GDI Cabinet 24 12 15
Door 15 1/4 11 3/4
27

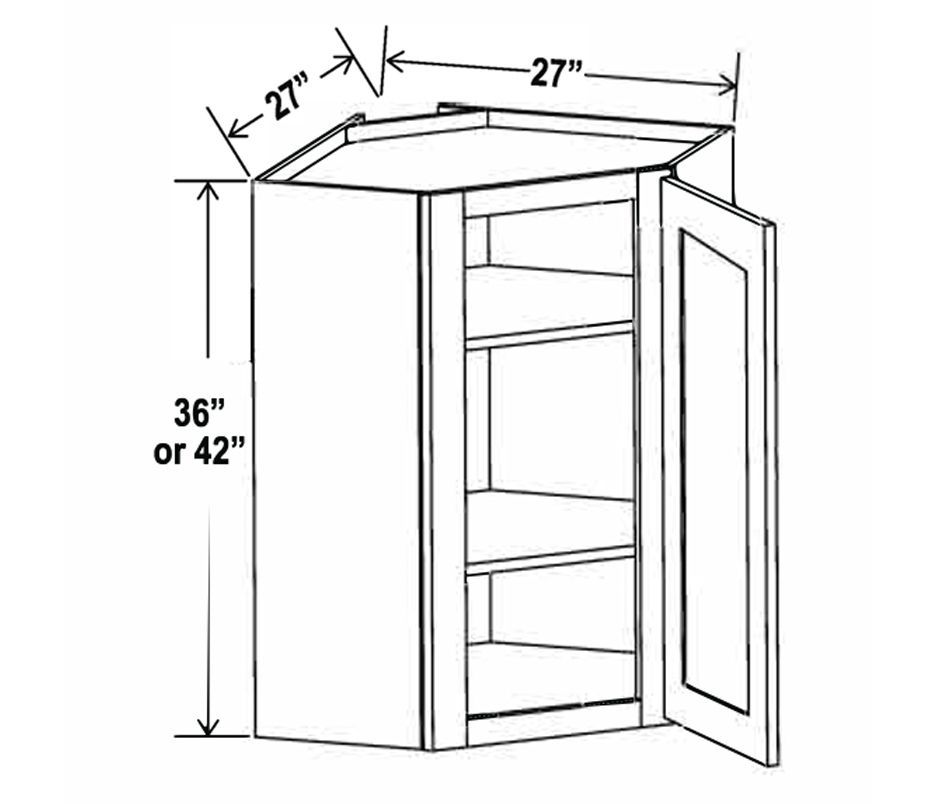

27"W Double Doors

  • Two adjustable shelves
Item Code Parts W H D
DCW2736 Cabinet 27 36 15
Door 15 1/4 35 3/4
DCW2742 Cabinet 27 42 15
Door 15 1/4 41 3/4

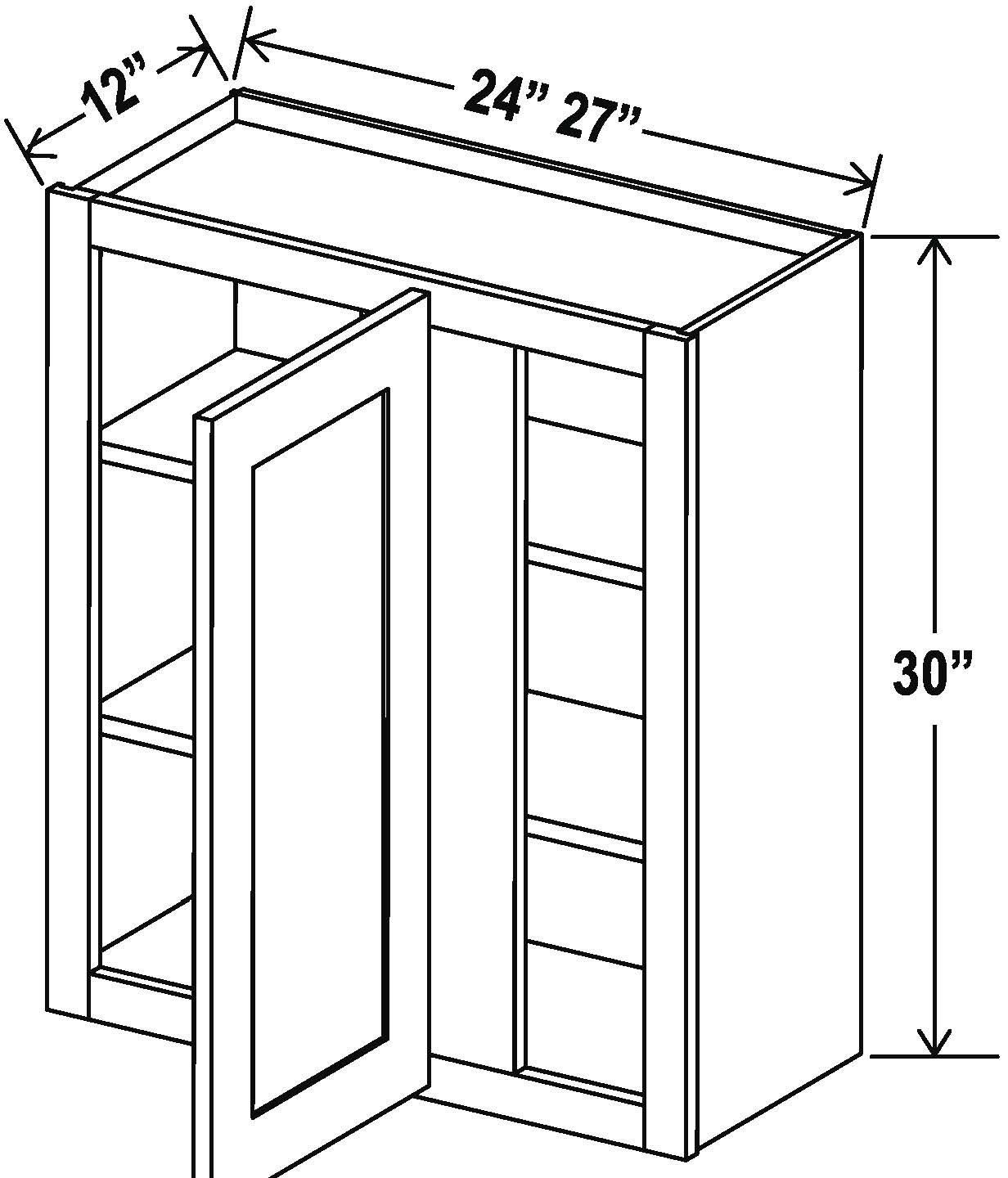

Wall Blind Corner Cabinet

30

30"H

  • Can be pulled to exact fit
Item Code Parts W H D
WBC2430 Cabinet 24 30 12
Door 9 9/16 29 3/4
WBC2730 Cabinet 27 30 12
Door 12 9/16 29 3/4

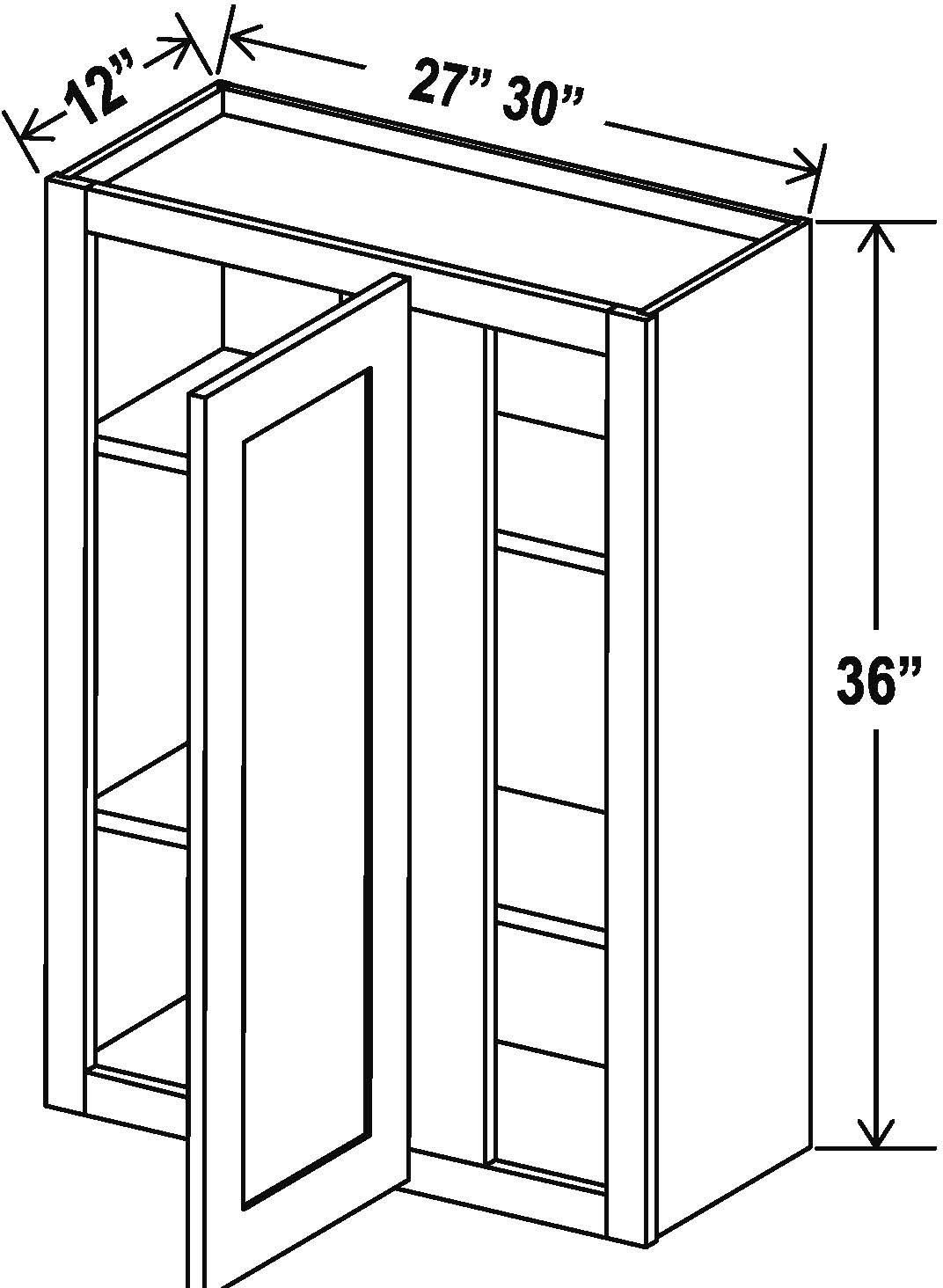

36

36"H

  • Can be pulled to exact fit
Item Code Parts W H D
WBC2736 Cabinet 27 36 12
Door 12 9/16 35 3/4
WBC3036 Cabinet 30 36 12
Door 21 9/16 35 3/4
42

42"H

  • Can be pulled to exact fit
Item Code Parts W H D
WBC2442 Cabinet 24 42 12
Door 9 9/16 41 3/4
WBC2742 Cabinet 27 42 12
Door 12 9/16 41 3/4
WBC3642 Cabinet 36 42 12
Door 21 9/16 41 3/4

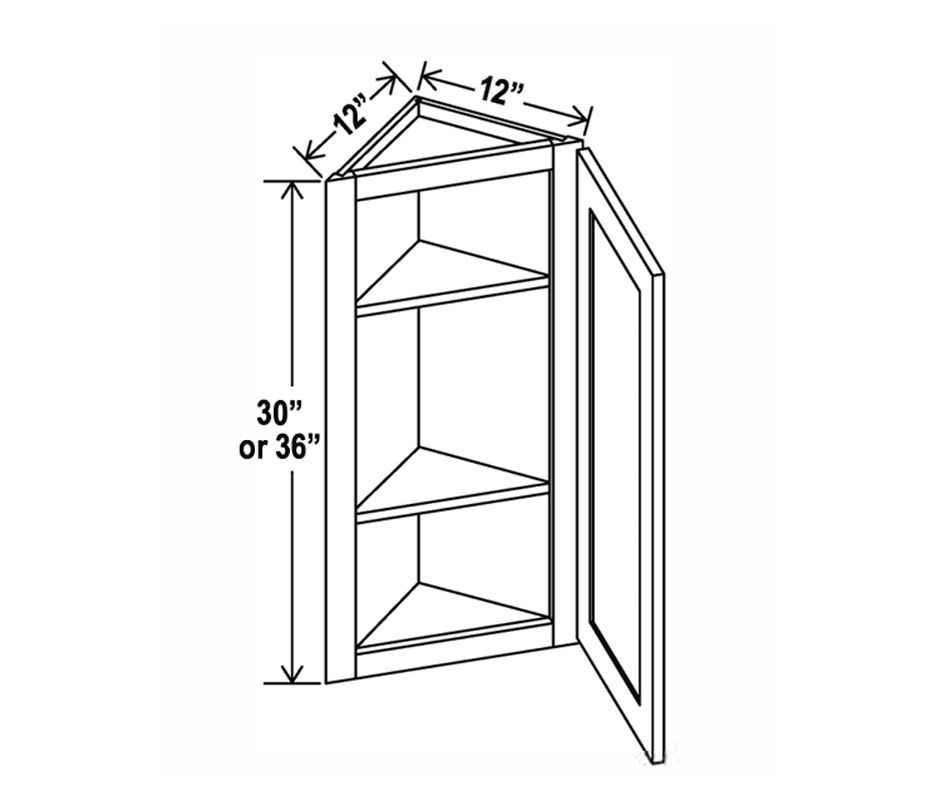

Angle Wall Cabinet

12

12"W

  • Two adjustable shelves
Item Code Parts W H D
AW1230 Cabinet 12 30 12
Door 15 3/5 29 3/4
AW1236 Cabinet 12 36 12
Door 15 3/5 35 3/4
12

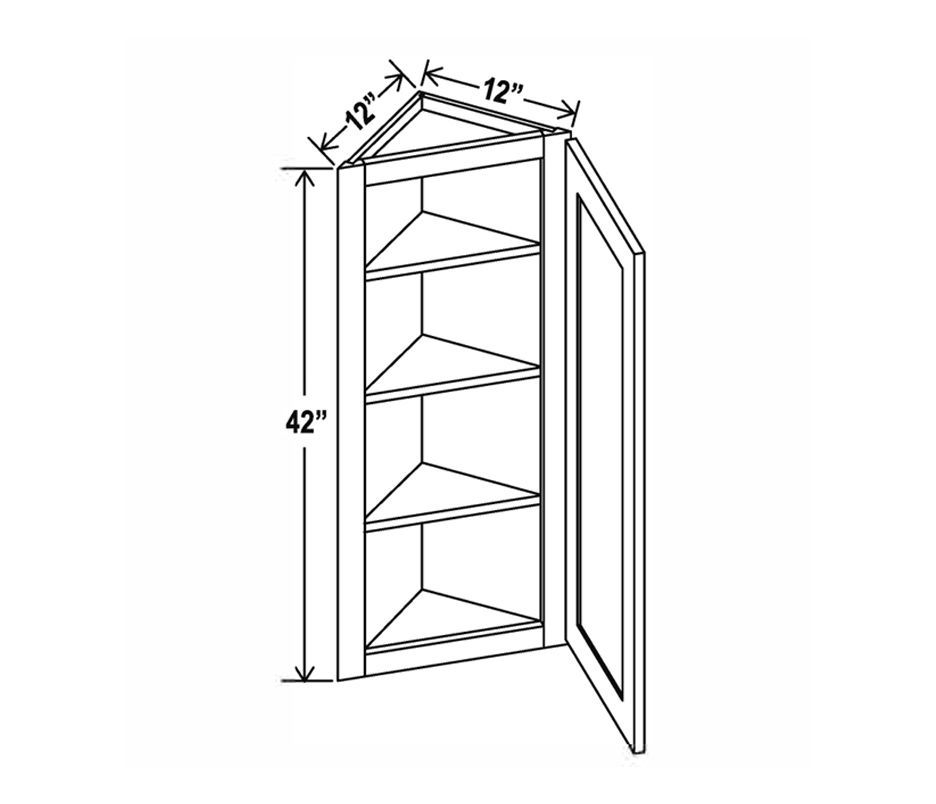

12"W

  • Three adjustable shelves
Item Code Parts W H D
AW1242 Cabinet 12 42 12
Door 15 3/5 41 3/4

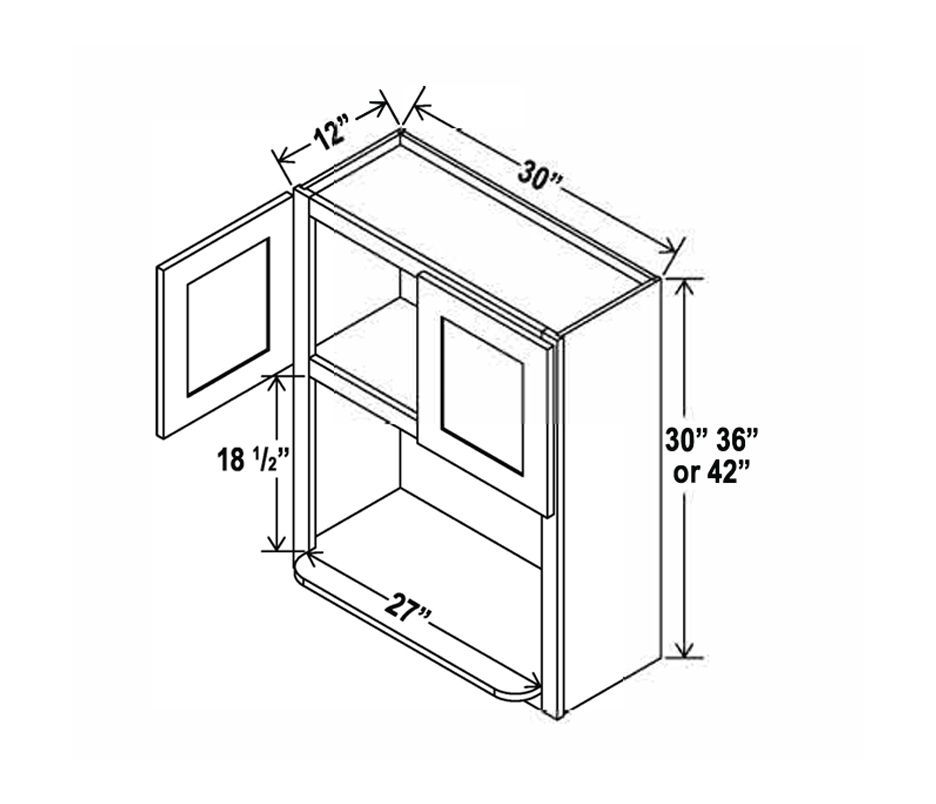

Microwave Wall Cabinet

30

30"W

  • Opening Dimensions: 27Wx 181/2 H
Item Code Parts W H D
MO3030 Cabinet 30 30 12
Door 14 3/4 9 1/4 3/4
MO3036 Cabinet 30 36 12
Door 14 3/4 15 1/4 3/4
MO3042 Cabinet 30 42 12
Door 14 3/4 21 1/4 3/4

Refrigerator Wall Cabinet

30

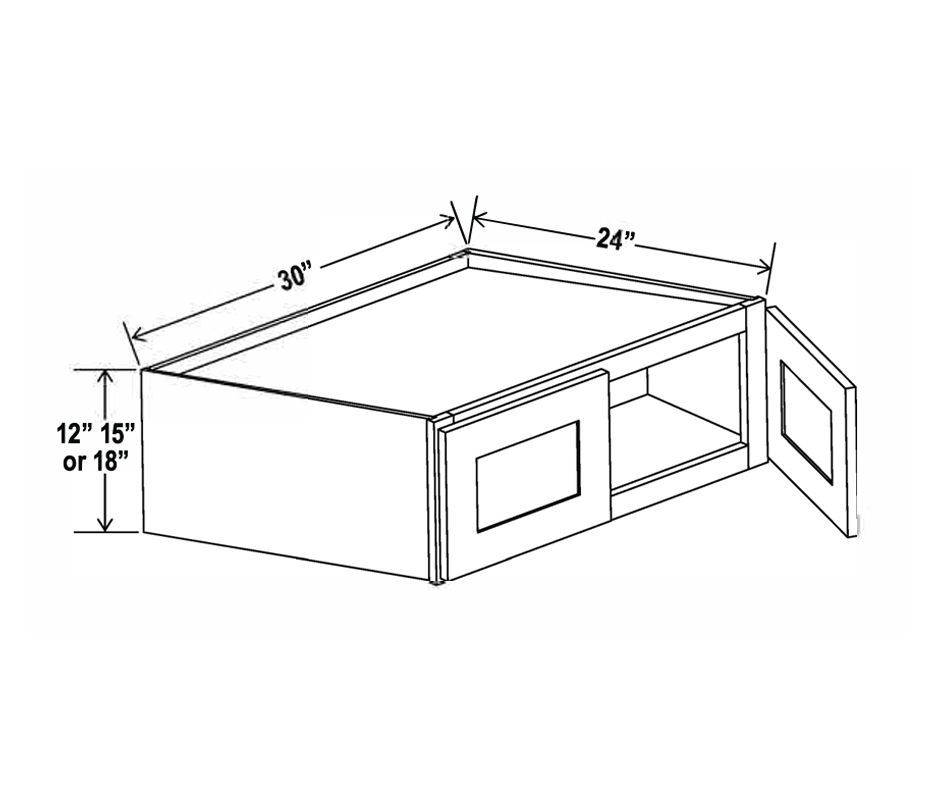

30"W Double Doors

  • No Shelf
Item Code Parts W H D
W301224 Cabinet 30 12 24
Door 14 3/4 11 3/4
W301524 Cabinet 30 15 24
Door 14 3/4 14 3/4
W301824 Cabinet 30 18 24
Door 14 3/4 17 3/4
24

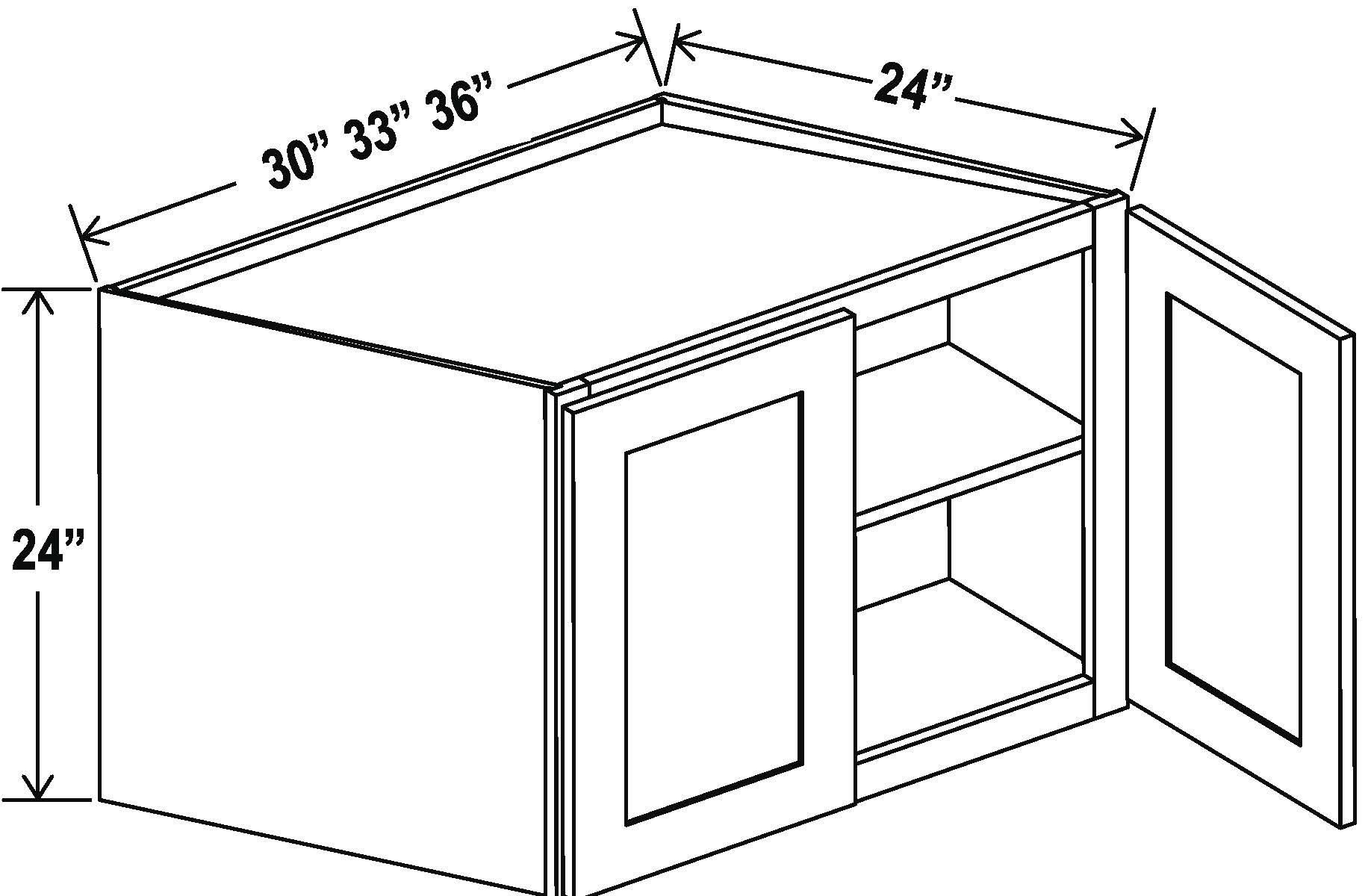

24"H Double Doors

  • One adjustable shelf
Item Code Parts W H D
W302424 Cabinet 30 24 24
Door 14 3/4 23 3/4
W332424 Cabinet 33 24 24
Door 16 1/4 23 3/4
W362424 Cabinet 36 24 24
Door 17 3/4 23 3/4
33

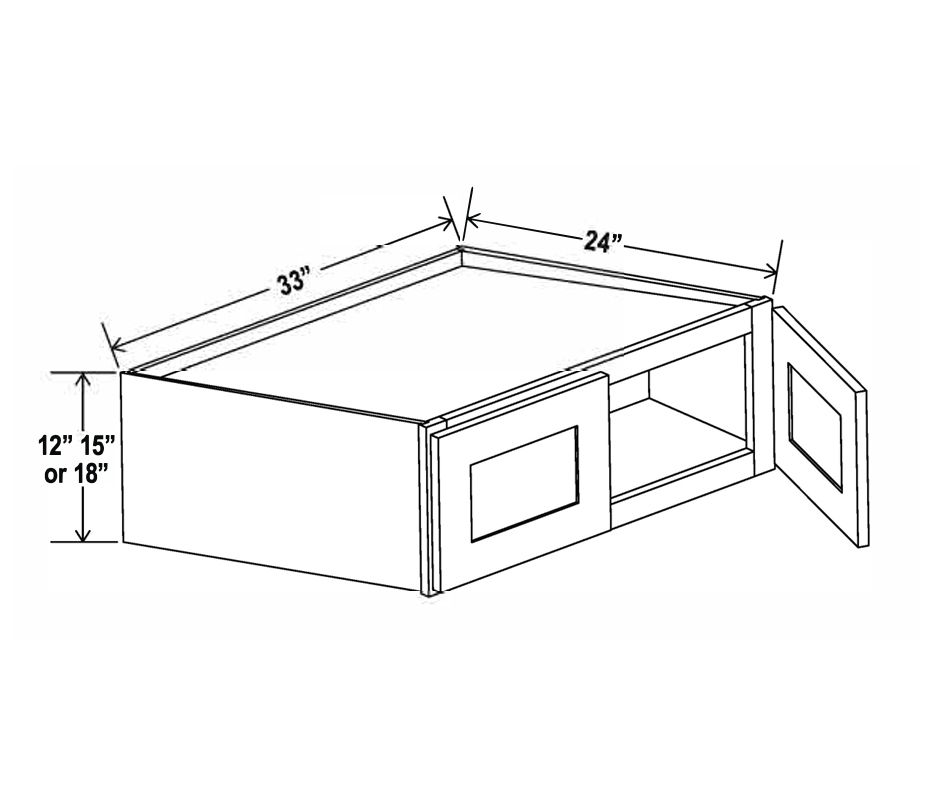

33"W Double Doors

  • No shelf
Item Code Parts W H D
W331224 Cabinet 33 12 24
Door 16 1/4 11 3/4
W331524 Cabinet 33 15 24
Door 16 1/4 14 3/4
W331824 Cabinet 33 18 24
Door 16 1/4 17 3/4
36

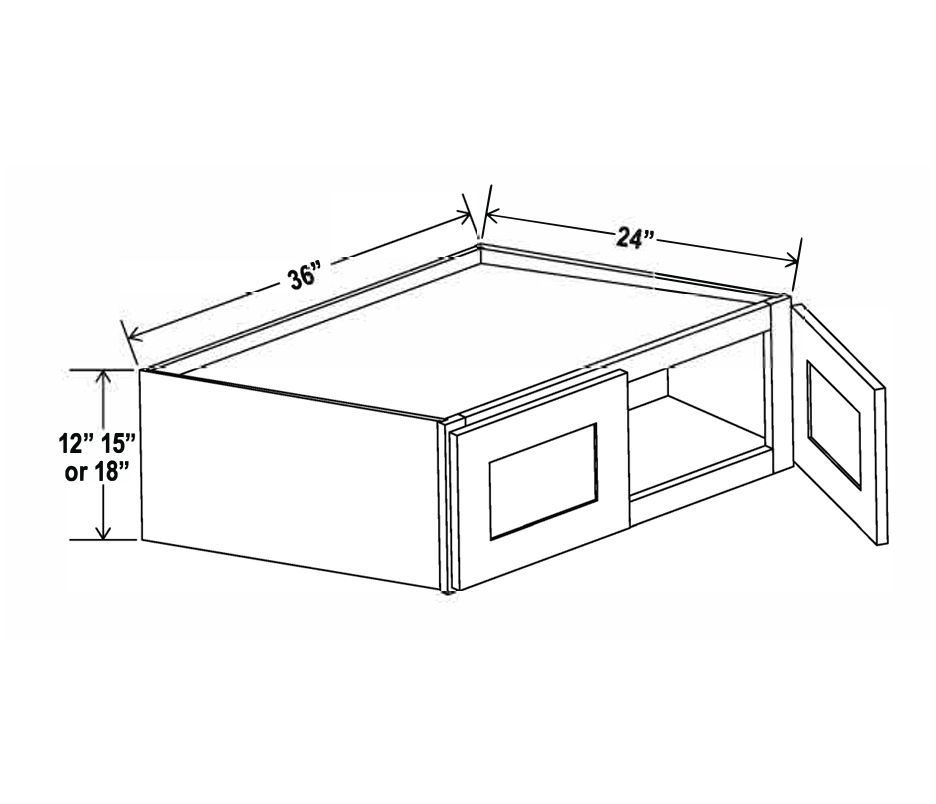

36"W Double Doors

  • No shelf
Item Code Parts W H D
W361224 Cabinet 36 12 24
Door 17 3/4 11 3/4
W361524 Cabinet 36 15 24
Door 17 3/4 14 3/4
W361824 Cabinet 36 18 24
Door 17 3/4 17 3/4

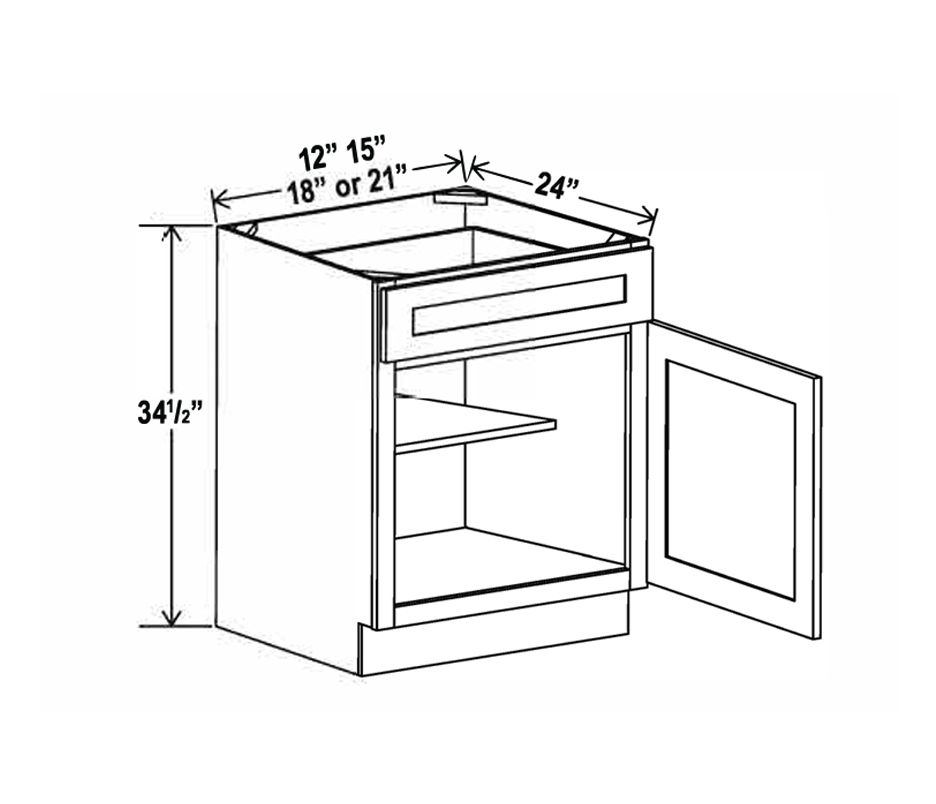

Base Cabinet

Single Door

  • One drawer
Item Code Parts W H D
B12 Cabinet 12 34 1/2 24
Door 11 1/2 22 1/2 3/4
Drawer 11 1/2 6 1/4 3/4
B15 Cabinet 15 34 1/2 24
Door 14 1/2 22 1/2 3/4
Drawer 14 1/2 6 1/4 3/4
B18 Cabinet 18 34 1/2 24
Door 17 1/2 22 1/2 3/4
Drawer 17 1/2 6 1/4 3/4
B21 Cabinet 21 34 1/2 24
Door 20 1/2 22 1/2 3/4
Drawer 20 1/2 6 1/4 3/4

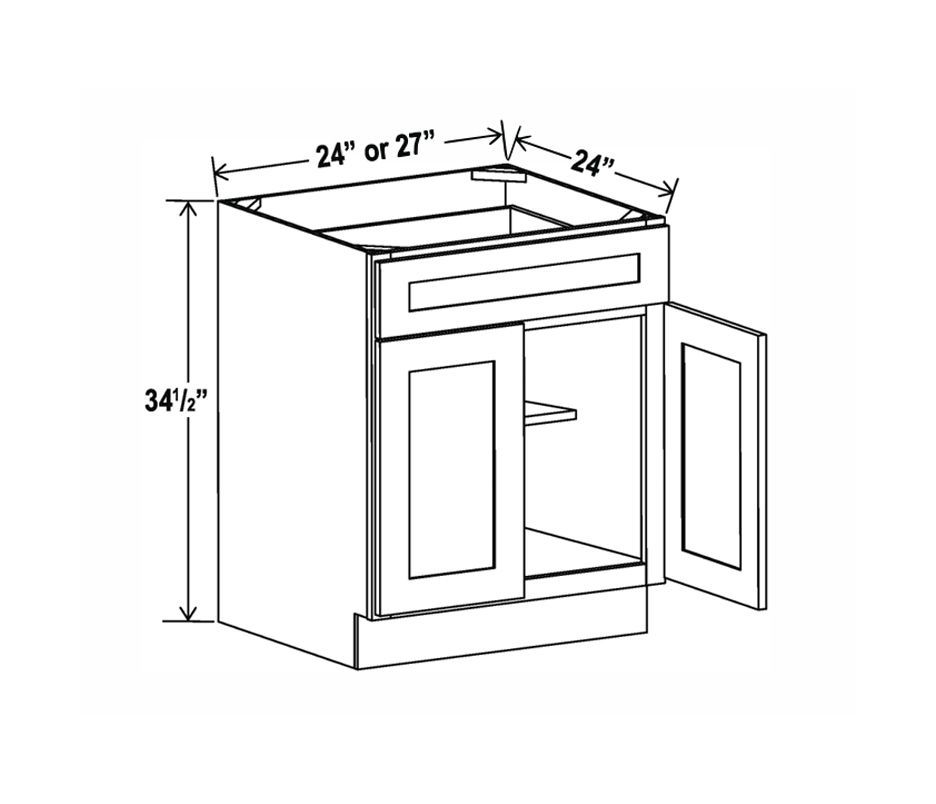

Base Cabinet Single Door

Double Doors

  • One drawer
Item Code Parts W H D
B24 Cabinet 24 34 1/2 24
Door 11 3/4 22 1/2 3/4
Drawer 23 1/2 6 1/4 3/4
B27 Cabinet 27 34 1/2 24
Door 13 1/4 22 1/2 3/4
Drawer 26 1/2 6 1/4 3/4

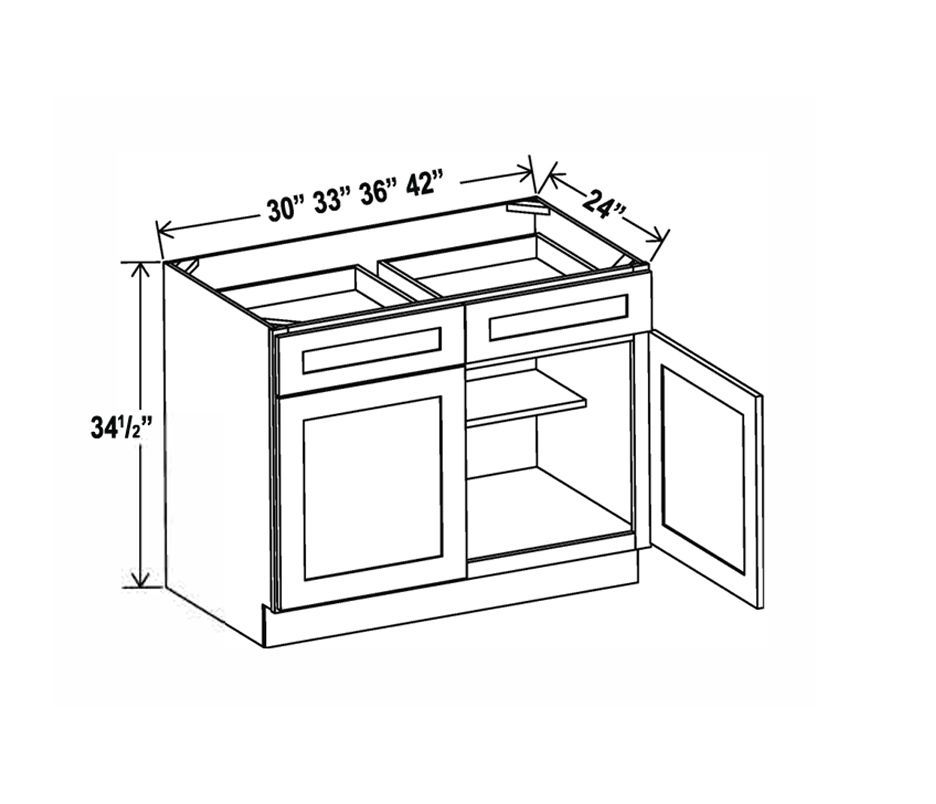

Base Cabinet Double Doors

Double Doors

  • Two drawer
Item Code Parts W H D
B30 Cabinet 30 34 1/2 24
Door 14 3/4 22 1/2 3/4
Drawer 14 3/4 6 1/4 3/4
B33 Cabinet 33 34 1/2 24
Door 16 1/4 22 1/2 3/4
Drawer 16 1/4 6 1/4 3/4
B36 Cabinet 36 34 1/2 24
Door 17 3/4 22 1/2 3/4
Drawer 17 3/4 6 1/4 3/4
B42 Cabinet 42 34 1/2 24
Door 20 3/4 22 1/2 3/4
Drawer 20 3/4 6 1/4 3/4

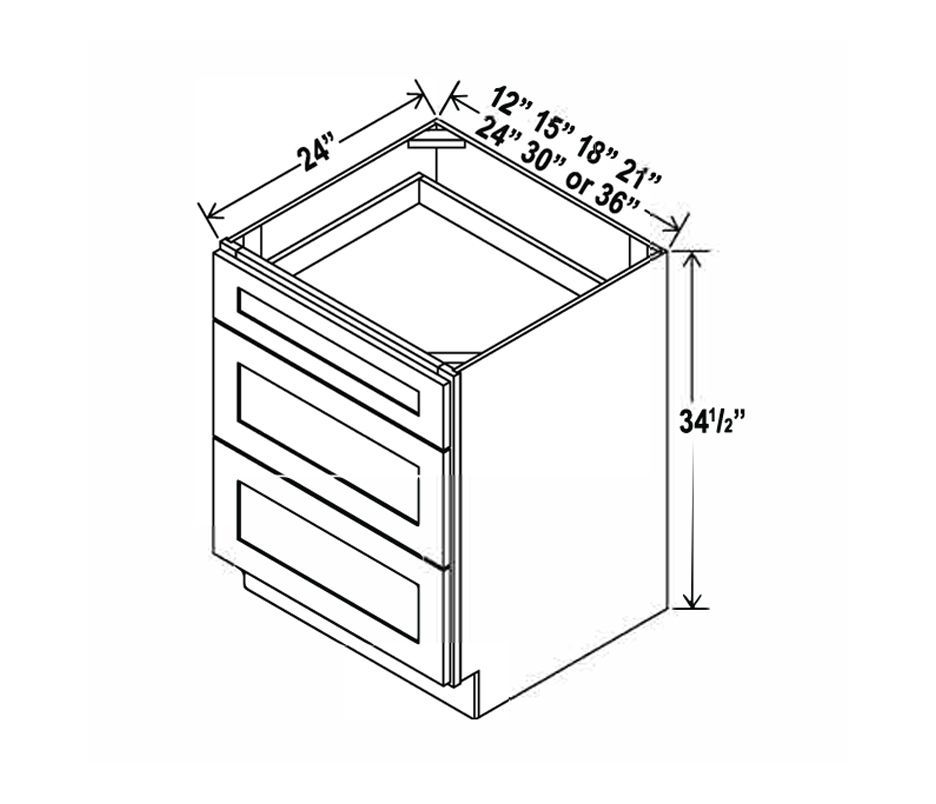

Drawer Base

Item Code Parts W H D
30B12 Cabinet 12 34 1/2 24
Top Drawer 11 1/2 6 1/4 3/4
Bottom Drawer 11 1/2 11 1/8 3/4
30B15 Cabinet 15 34 1/2 24
Top Drawer 14 1/2 6 1/4 3/4
Bottom Drawer 14 1/2 11 1/8 3/4
30B18 Cabinet 18 34 1/2 24
Top Drawer 17 1/2 6 1/4 3/4
Bottom Drawer 17 1/2 11 1/8 3/4
30B21 Cabinet 21 34 1/2 24
Top Drawer 20 1/2 6 1/4 3/4
Bottom Drawer 20 1/2 11 1/8 3/4
30B24 Cabinet 24 34 1/2 24
Top Drawer 23 1/2 6 1/4 3/4
Bottom Drawer 23 1/2 11 1/8 3/4
30B30 Cabinet 30 34 1/2 24
Top Drawer 29 1/2 6 1/4 3/4
Bottom Drawer 29 1/2 11 1/8 3/4
30B36 Cabinet 36 34 1/2 24
Top Drawer 35 1/2 6 1/4 3/4
Bottom Drawer 35 1/2 11 1/8 3/4

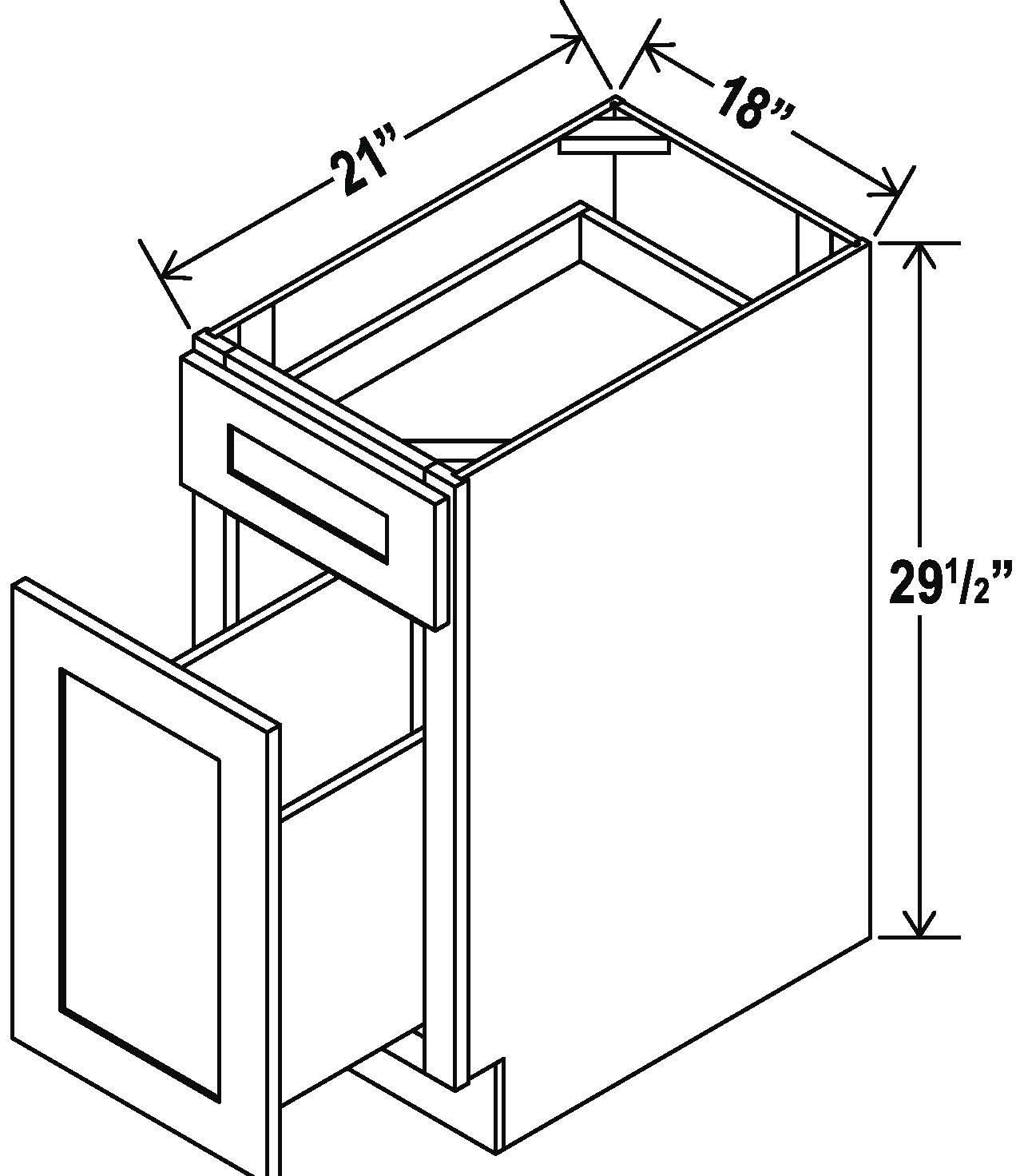

Drawer Base

Document File

  • Two drawers
Item Code Parts W H D
DFB18 Cabinet 18 29 1/2 21
Top Drawer 17 1/2 6 1/4 3/4
Bottom Drawer 17 1/2 17 1/2 3/4
Document File Base Cabinet

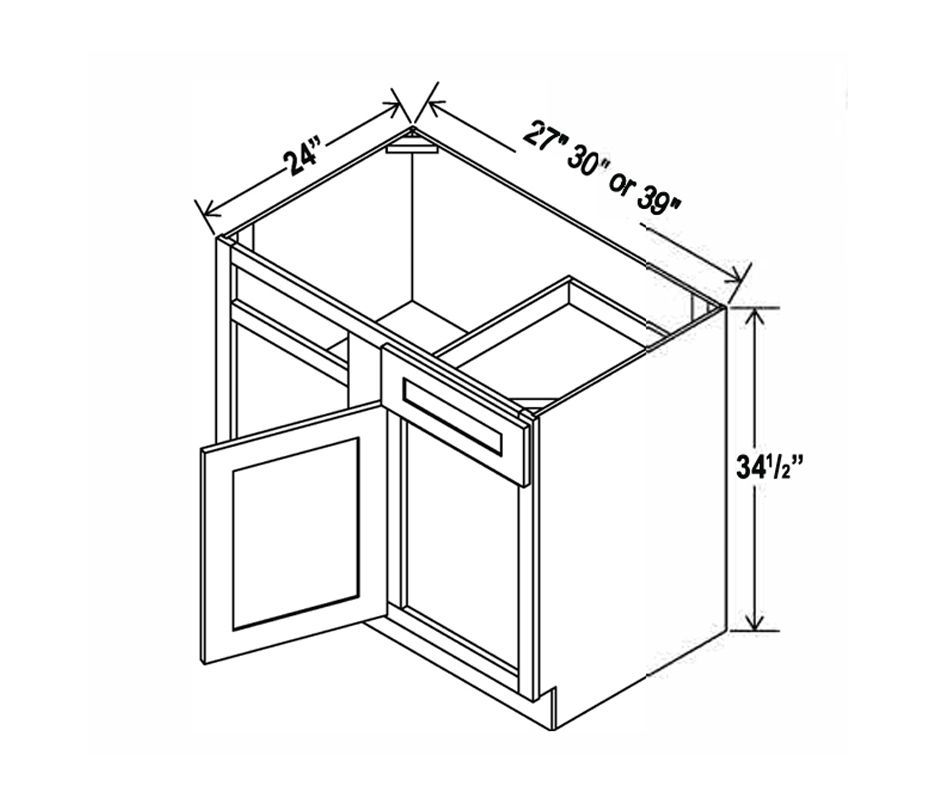

Blind Corner

  • Install range BBC36: 36"- 39"
  • Install range BBC39: 39"-42"
  • Install range BBC42: 43.5"-45"
Item Code Parts W H D
BBC36 Cabinet 27 34 1/2 24
Door 11 1/2 22 1/2 3/4
Drawer 11 1/2 6 1/4 3/4
BBC39 Cabinet 30 34 1/2 24
Door 13 22 1/2 3/4
Drawer 13 6 1/4 3/4
BBC42 Cabinet 39 34 1/3 24
Door 17 1/2 22 1/2 3/4
Drawer 17 1/2 6 1/4 3/4
Blind Corner Base Cabinet

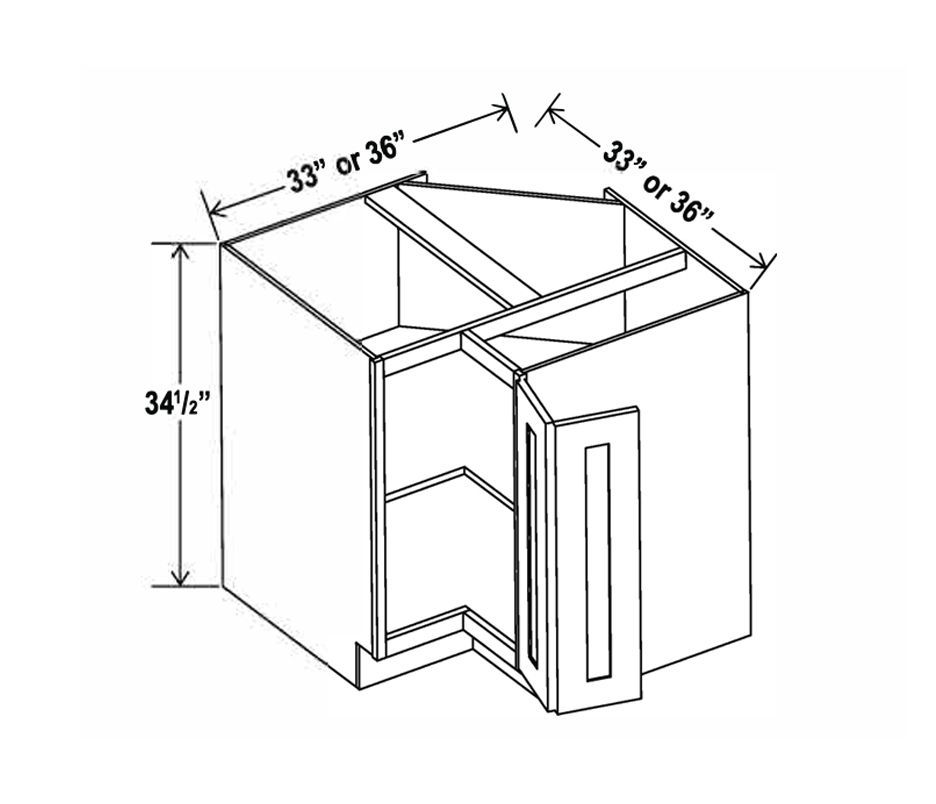

Easy Reach

  • One bi-fold door
Item Code Parts W H D
ERB33 Cabinet 33 34 1/2 24
Door 7 5/8 29 3/4
ERB36 Cabinet 36 34 1/2 24
Door 10 5/8 29 3/4
Easy Reach Base Cabinet

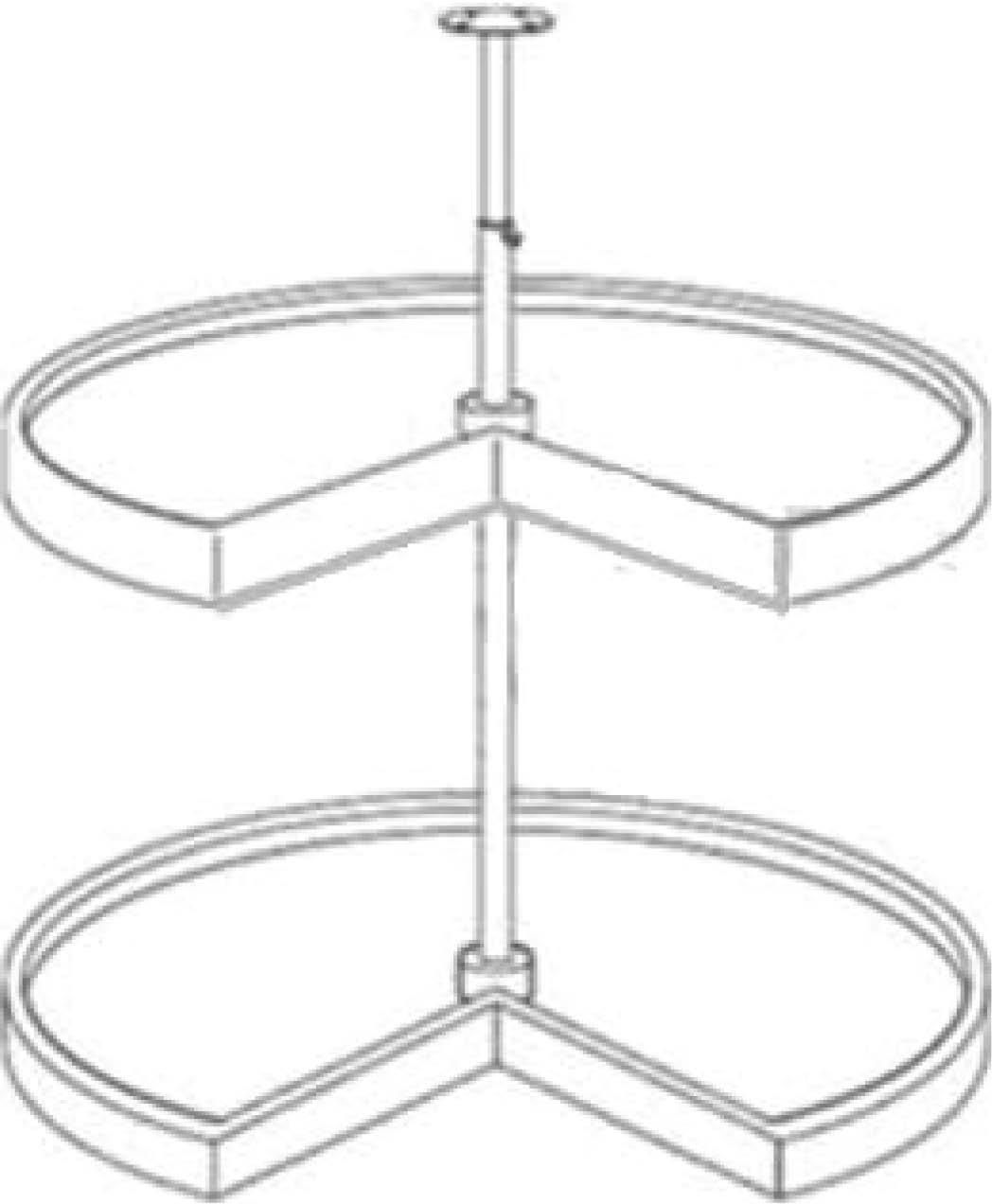

Wood tray

  • Item codes:
  • Lazy Susan 33
  • Lazy Susan 36
  • Lazy Susan comes with wood tray
  • Wood Tray Fits both 33" and 36"

*NOTE: Wood tray does not have a pole included in the middle

Wood Tray

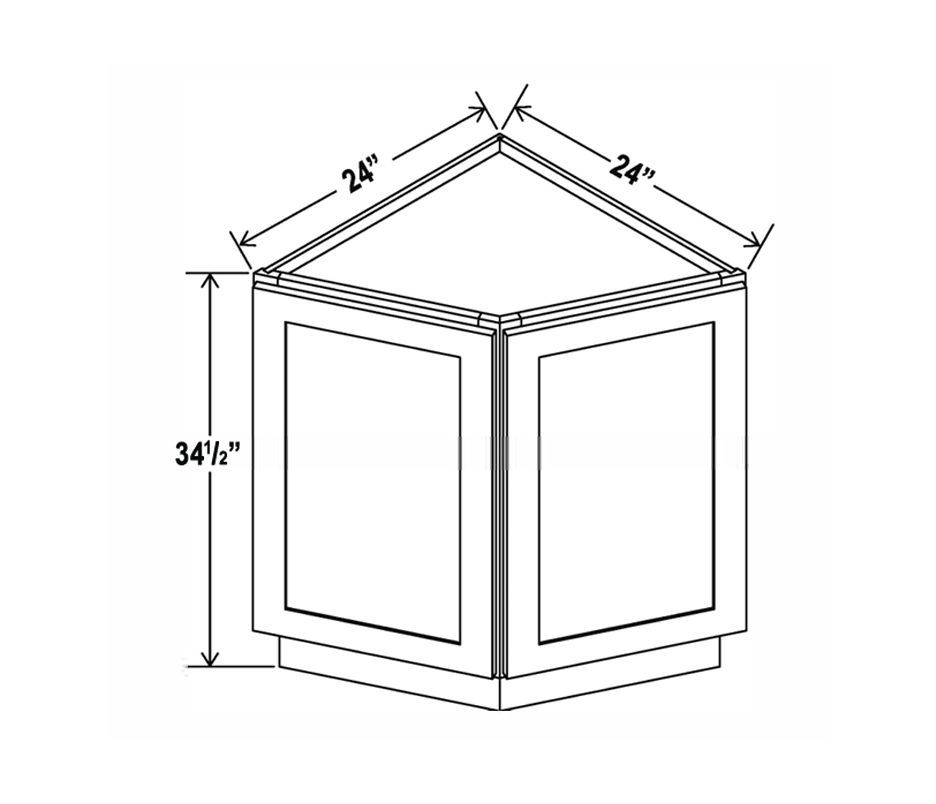

End Cabinet

Item Code Parts W H D
BEC24 Cabinet 24 34 1/2 24
Door 17 1/2 29 3/4
Base End Cabinet

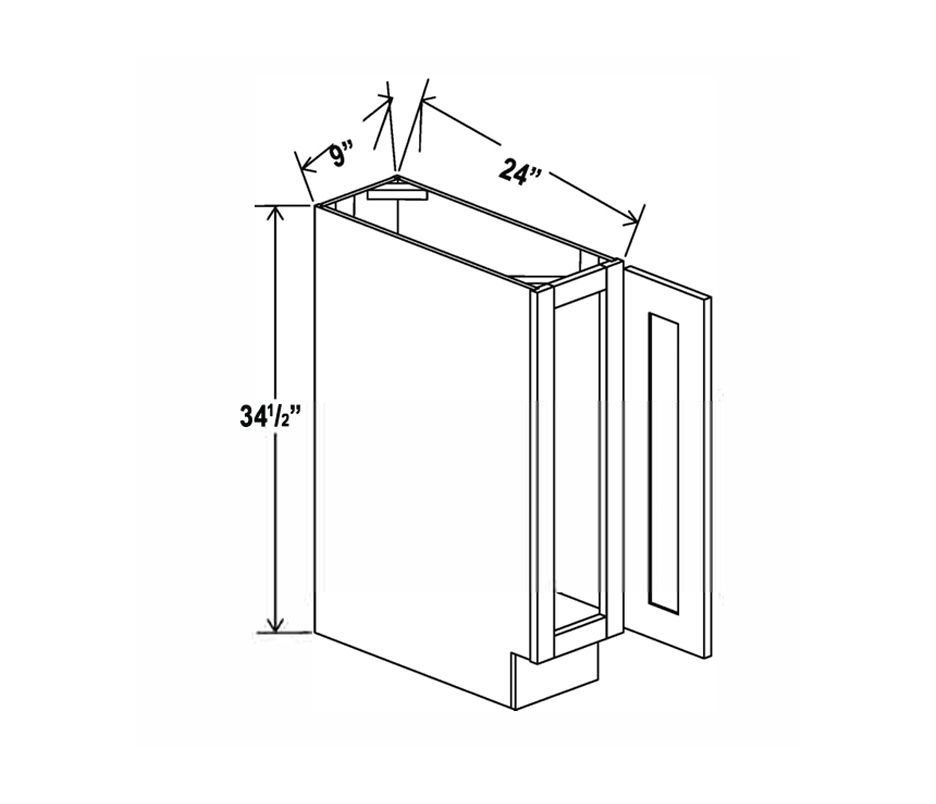

Base Tray

Item Code Parts W H D
BTQg Cabinet 9 34 1/2 24
Door 8 1/2 29 3/4
Base Tray

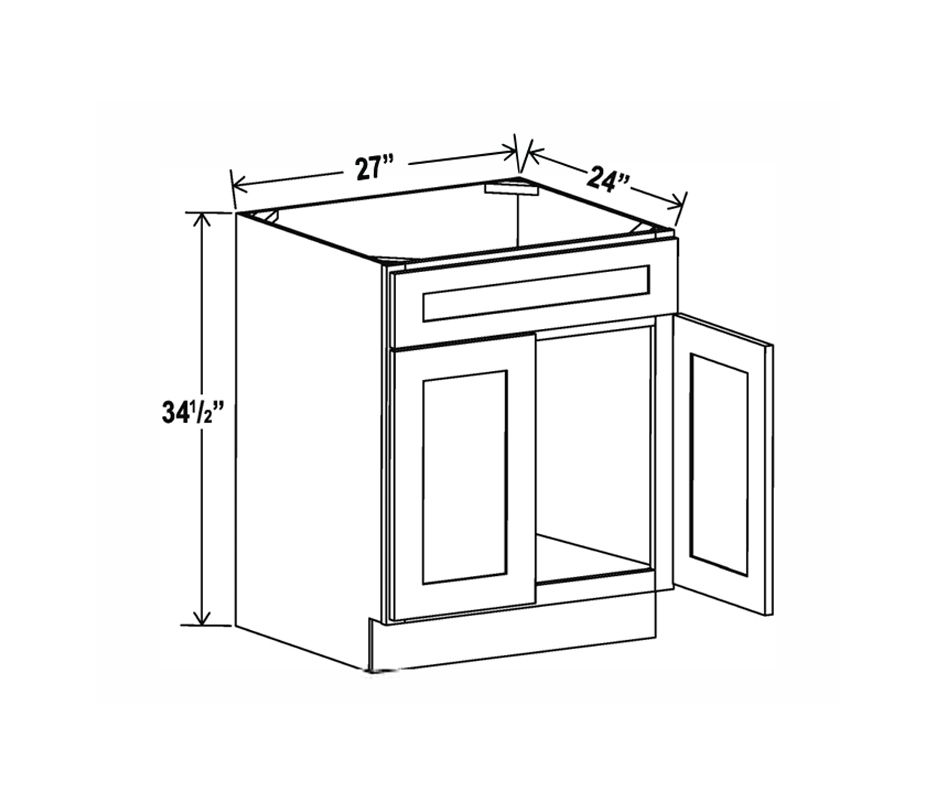

Sink Base

  • One dummy drawer
Item Code Parts W H D
SB27 Cabinet 27 34 1/2 24
Door 13 1/4 22 1/2 3/4
Drawer 26 1/2 6 1/4 3/4
Sink Base Cabinet

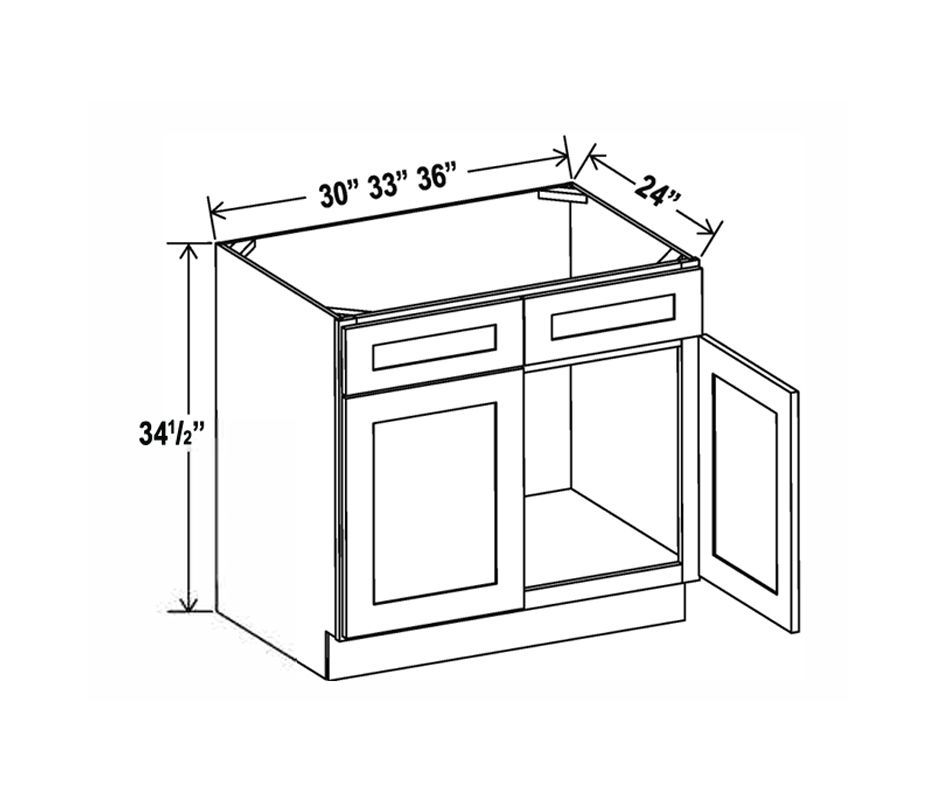

Sink Base

  • Two dummy drawers
Item Code Parts W H D
SB30 Cabinet 30 34 1/2 24
Door 14 3/4 22 1/2 3/4
Drawer 14 3/4 6 1/4 3/4
SB33 Cabinet 33 34 1/2 24
Door 16 1/4 22 1/2 3/4
Drawer 16 1/4 6 1/4 3/4
5B36 Cabinet 36 34 1/2 24
Door 17 3/4 22 1/2 3/4
Drawer 17 3/4 6 1/4 3/4
Sink Base

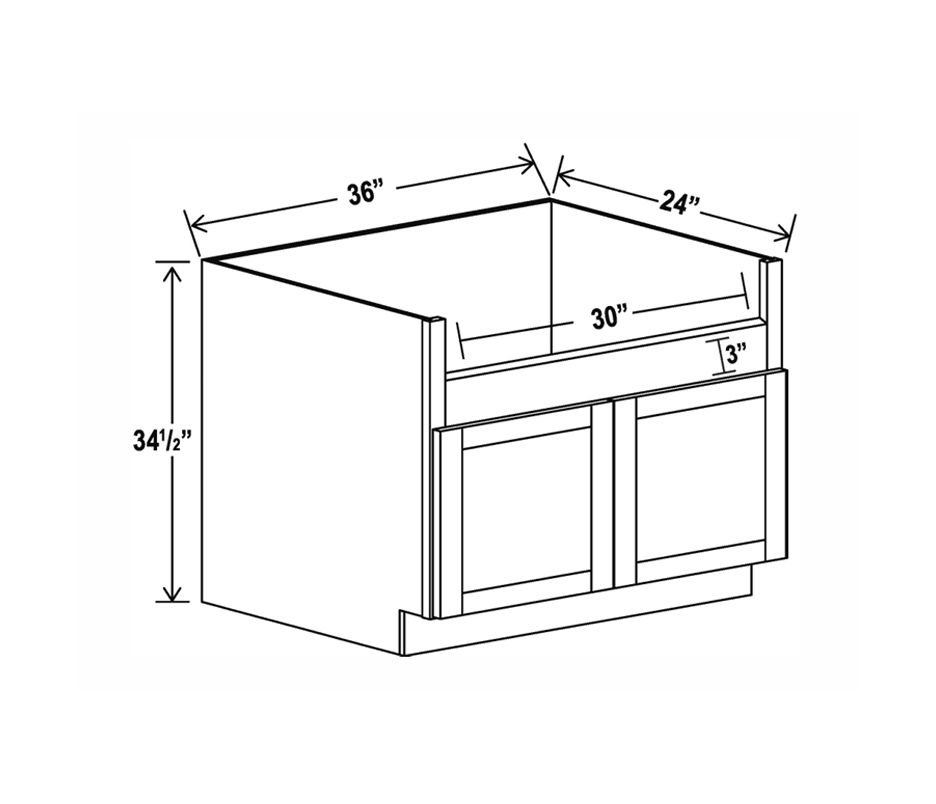

Farmhouse Sink Base

  • Sink Trimout: 30"W X 7 1 /2" -9"H
Item Code Parts W H D
FSB36 Cabinet 36 34 1/2 24
Door 17 3/4 16 1/2 3/4
Farmhouse Sink Base

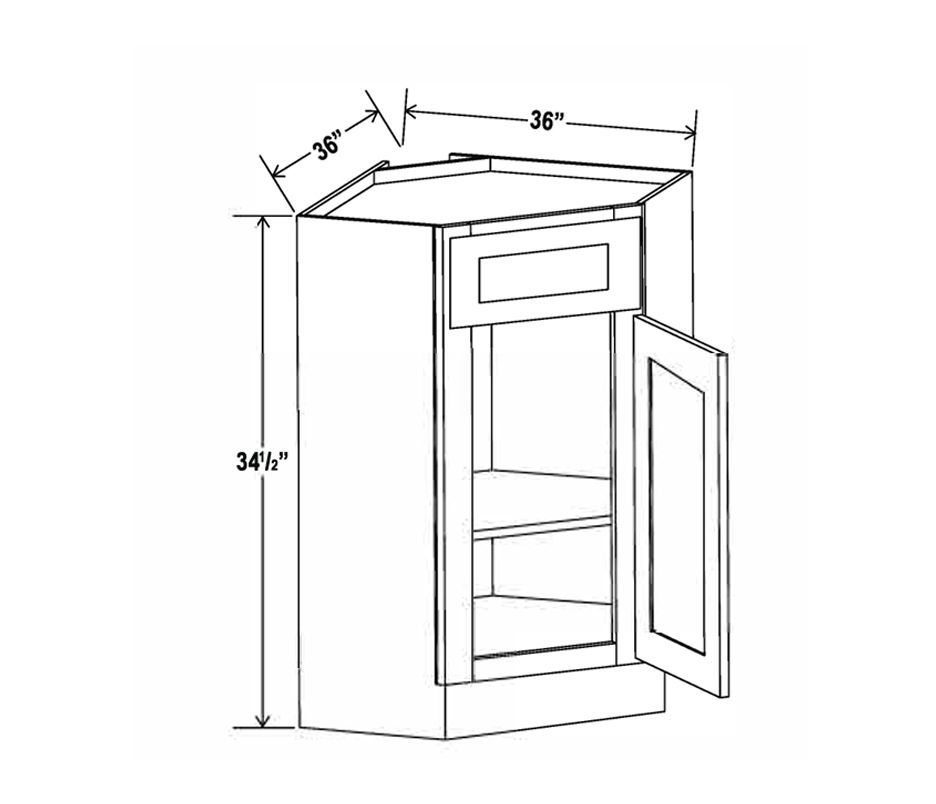

Corner Sink

  • One dummy drawer
Item Code Parts W H D
CSB36 Cabinet 36 34 1/2 24
Door 15 1/4 22 1/4 3/4
Drawer 15 1/4 6 1/4 3/4
Corner Sink Base Cabinet

Corner Sink Base Floor

  • For use with DCSF42
Item Code Parts W
SBF4242 Cabinet 42
Corner Sink Base Floor

Corner Sink Base Front

  • For use with SBF4242
Item Code Parts W H D
DSCF42 Cabinet 26 1/4 30 3/4
Door 11 3/4 22 1/2 3/4
Drawer 23 1/2 6 1/4 3/4
Corner Sink Base Front

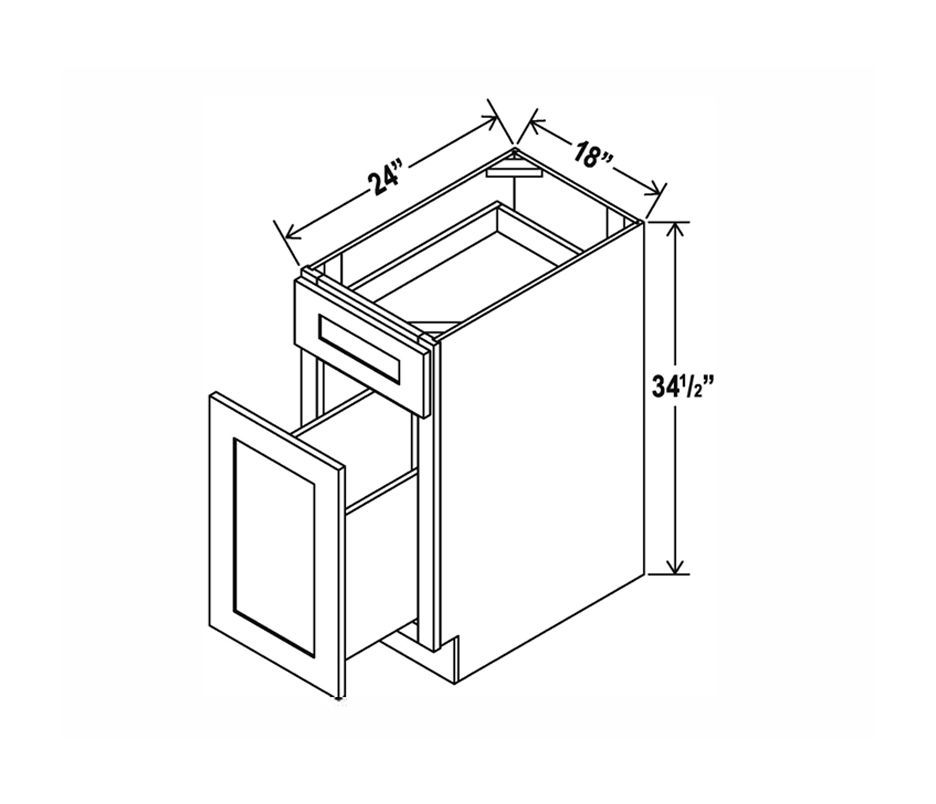

Base Waste Basket Cabinet

Item Code Parts W H D
BWB18 Cabinet 18 34 1/2 24
Top Drawer 17 1/2 6 1/4 3/4
Bottom Drawer 17 1/2 22 1/2 3/4
Base Waste Basket Cabinet

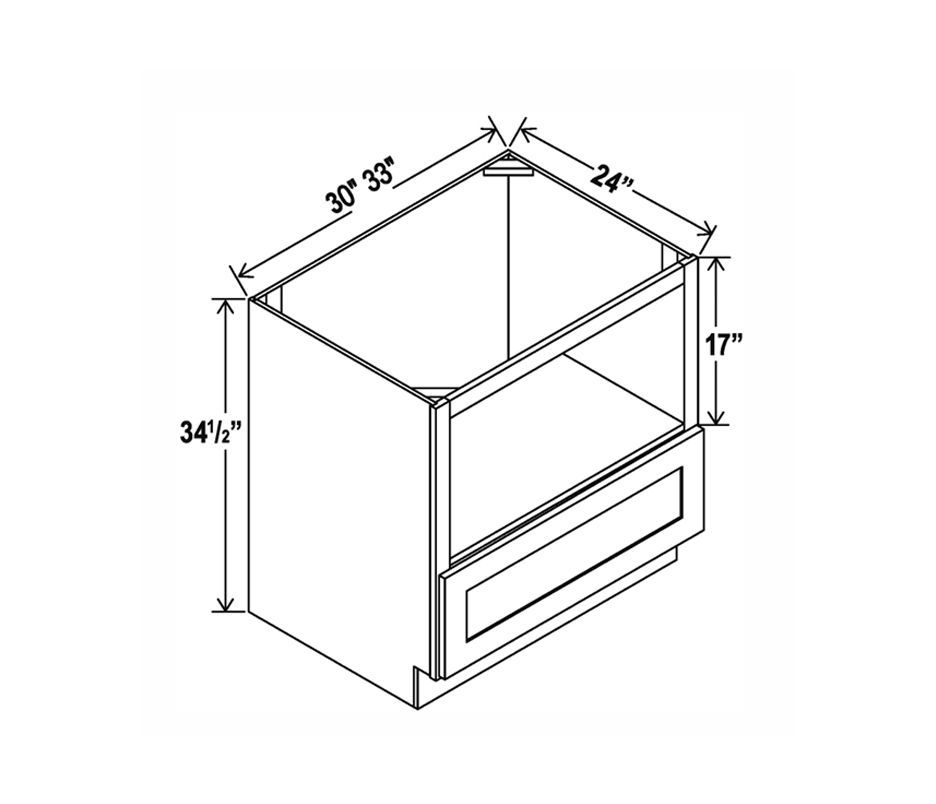

Microwave Base Cabinet

  • MB30 Opening Dimensions: 27"W x 17"H
  • MB33 Opening Dimensions: 30"W x 17"H
Item Code Parts W H D
MB30 Cabinet 30 34 1/2 24
Drawer 29 1/2 10 1/2 3/4
MB33 Cabinet 33 34 1/2 24
Drawer 32 1/2 10 1/2 3/4
Microwave Base Cabinet

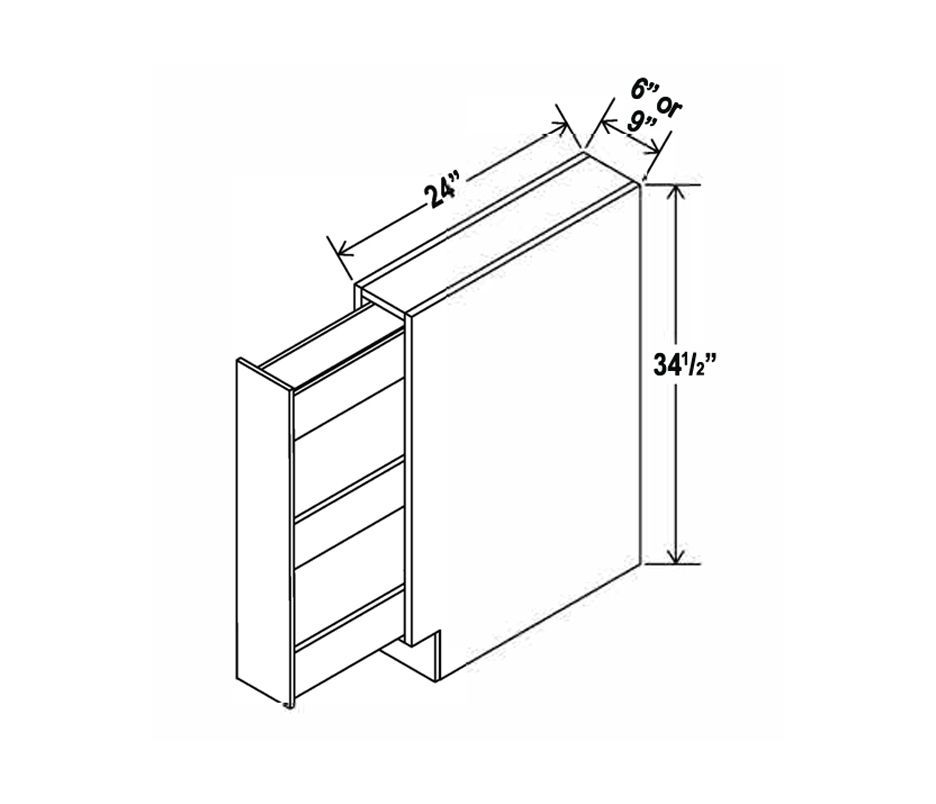

Spice Pull Base Cabinet

Item Code Parts W H D
SPB6 Cabinet 6 34 1/2 24
Drawer 5 1/2 29 3/4
MB33 Cabinet 9 34 1/2 24
Drawer 8 1/2 29 3/4
Spice Pull Base Cabinet

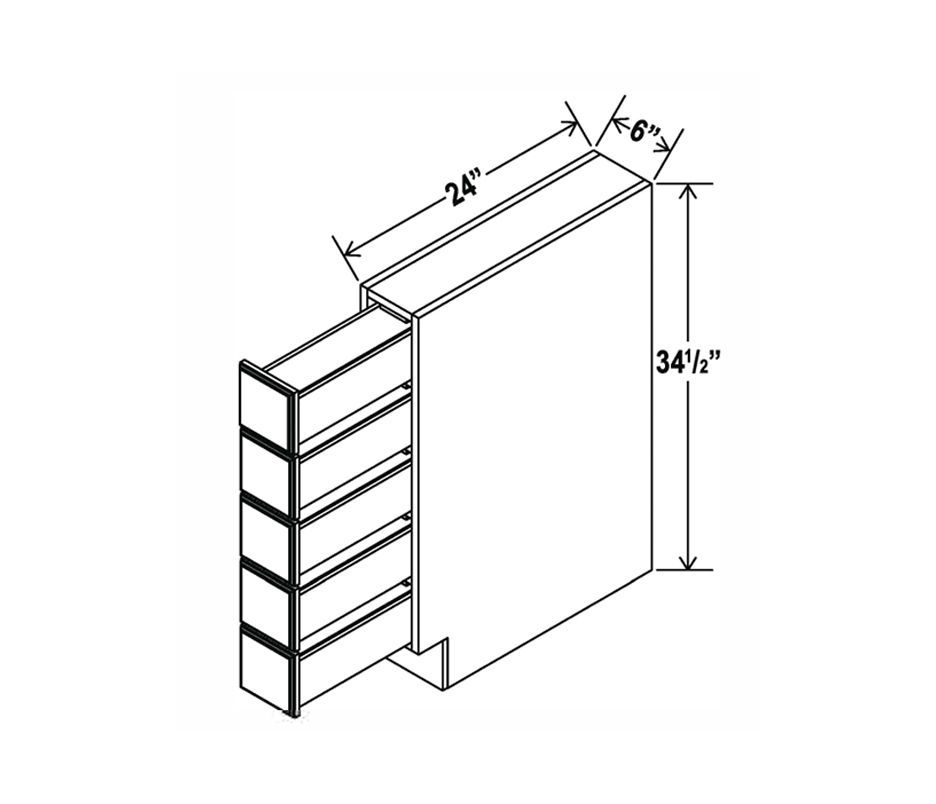

Base Spice Drawer

Item Code Parts W H D
BSDC6 Cabinet 6 34 1/2 24
Base Spice Drawer

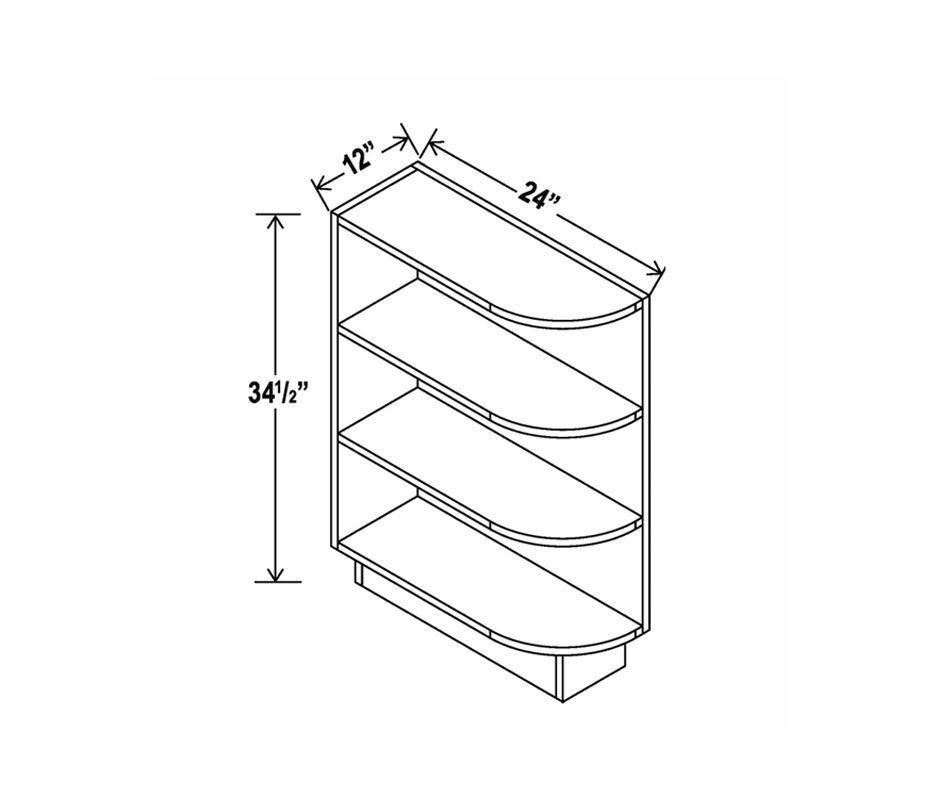

Base End Shelf

Item Code Parts W H D
BES12 Cabinet 12 34 1/2 24
base end shelf

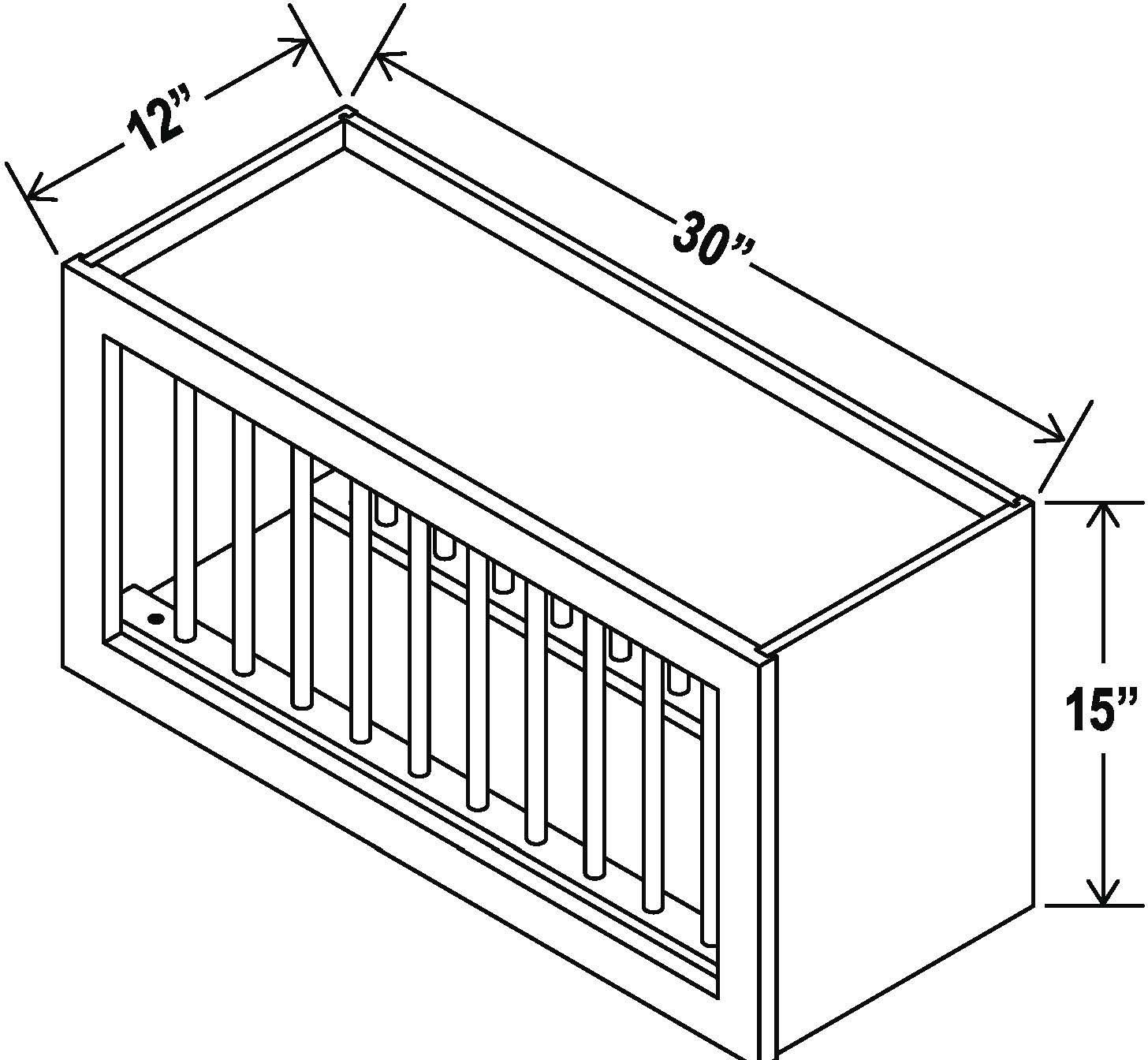

15"H Plate Rack

  • 10 plate slots
Item Code Parts W H D
PR3Q15 Cabinet 30 15 12
15

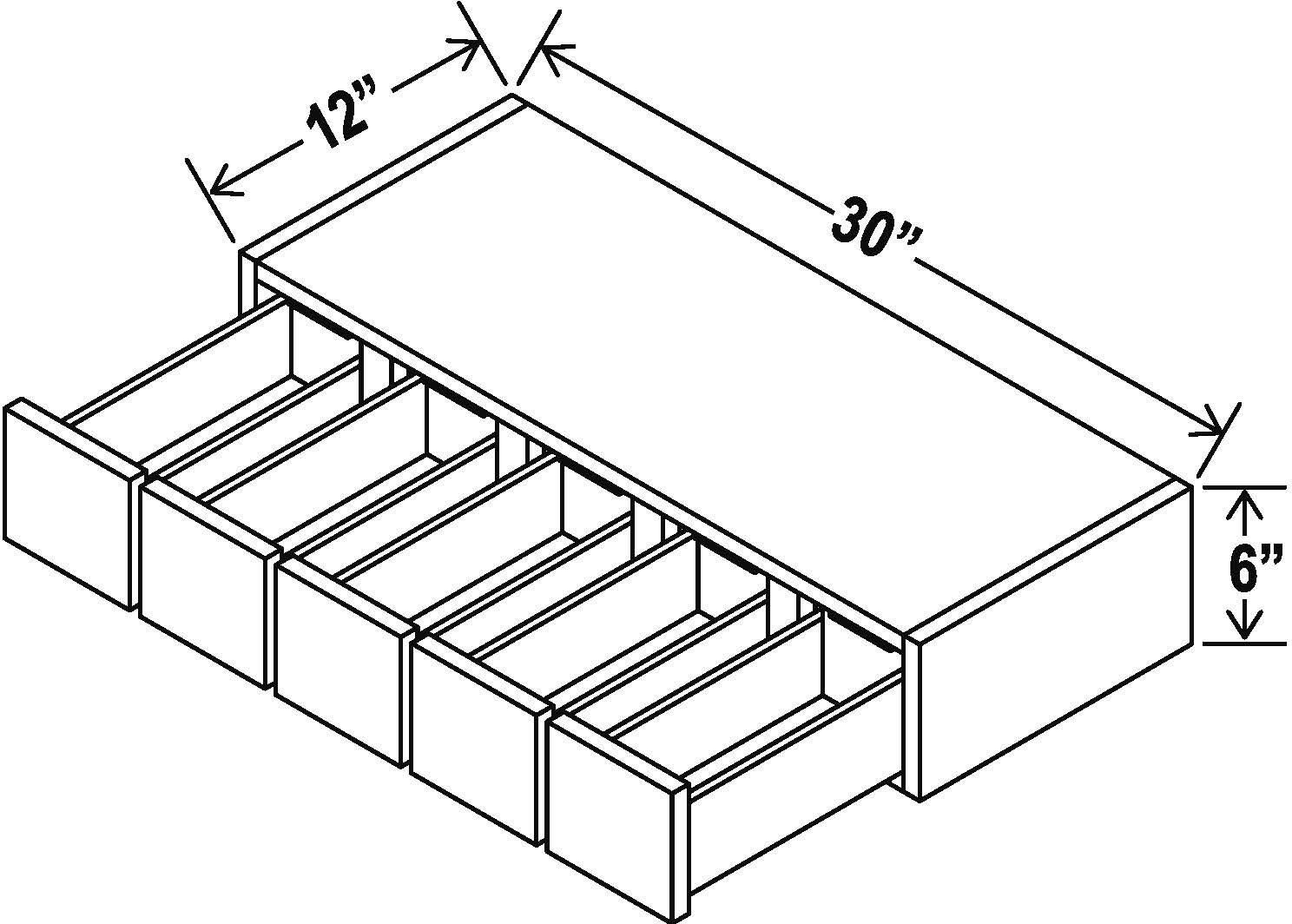

6"H Wall Spice Drawer

  • 5 drawers
Item Code Parts W H D
WSD63Q Cabinet 30 6 12
6

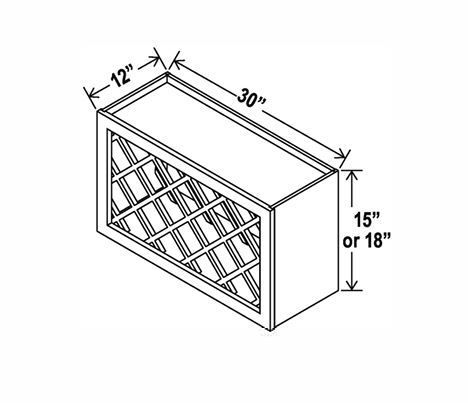

30"W Wine Rack

  • Can install vertically or horizontally
Item Code Parts W H D
WRC3015 Cabinet 30 15 12
WRC3018 Cabinet 30 18 12
30

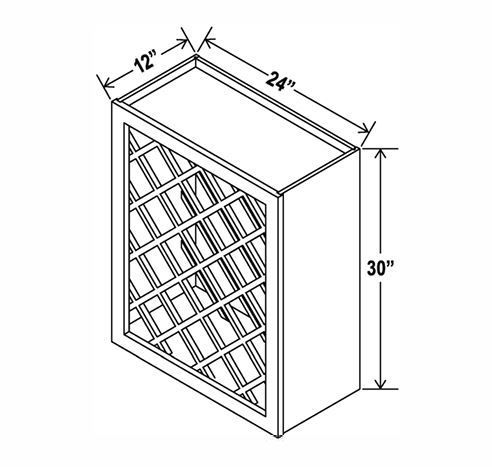

30"H Wine Rack

  • Can install vertically or horizontally
Item Code Parts W H D
WRC243Q Cabinet 24 30 12
30

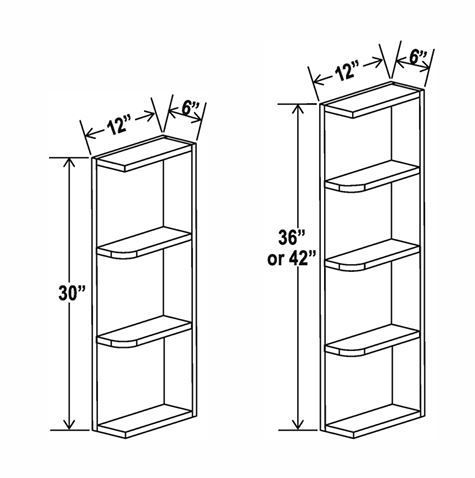

6"W Open End Shelf

  • Matching color interior
Item Code Parts W H D
OE630 Cabinet 6 30 12
OE636 Cabinet 6 36 12
OE642 Cabinet 6 42 12
6

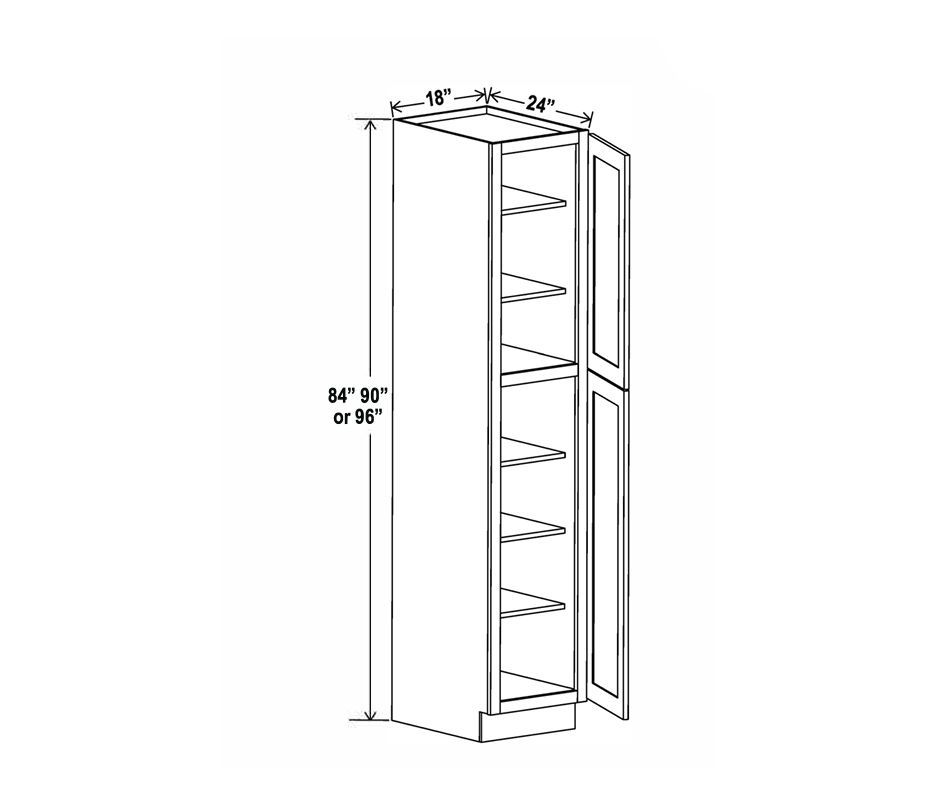

Utility Pantry

18"W

  • Two adjustable top shelves
  • Three bottom shelves
  •  Roll out shelf kits available
Item Code Parts W H D
U188424 Cabinet 18 84 24
Top Door 17 1/2 29 3/4
Bottom Door 17 1/2 49 1/4 3/4
U189024 Cabinet 18 90 24
Top Door 17 1/2 35 3/4
Bottom Door 17 1/2 49 1/4 3/4
U189624 Cabinet 18 96 24
Top Door 17 1/2 41 3/4
Bottom Door 17 1/2 49 1/4 3/4

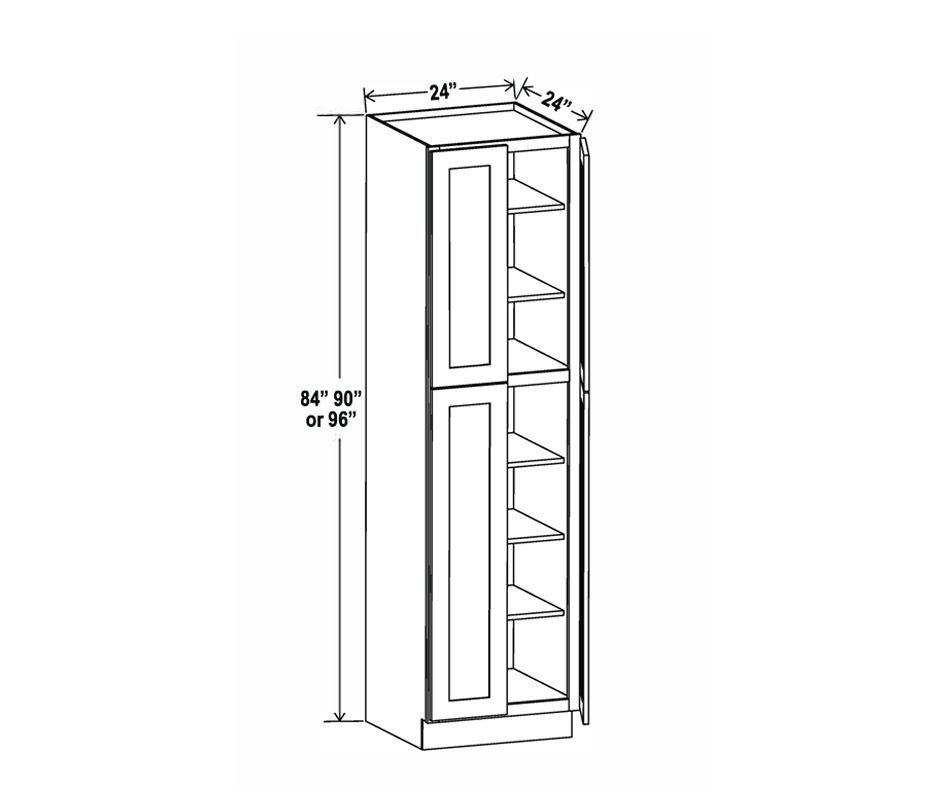

Utility Pantry

24"W

  • Two adjustable top shelves
  • Three bottom shelves
  •  Roll out shelf kits available
Item Code Parts W H D
U248424 Cabinet 24 84 24
Top Door 11 3/4 29 3/4
Bottom Door 11 3/4 49 1/4 3/4
U249024 Cabinet 24 90 24
Top Door 11 3/4 35 3/4
Bottom Door 11 3/4 49 1/4 3/4
U249624 Cabinet 24 96 24
Top Door 11 3/4 41 3/4
Bottom Door 17 1/2 49 1/4 3/4

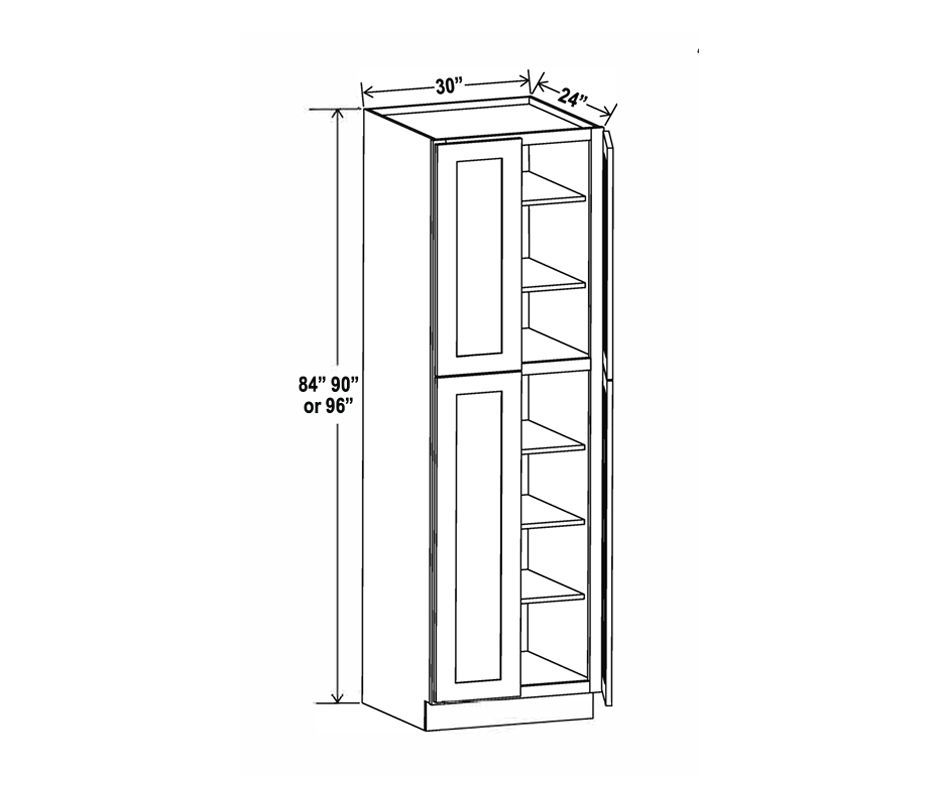

Utility Pantry

30"W

  • Two adjustable top shelves
  • Three bottom shelves
  •  Roll out shelf kits available
Item Code Parts W H D
U308424 Cabinet 30 84 24
Top Door 14 3/4 29 3/4
Bottom Door 14 3/4 49 1/4 3/4
U249024 Cabinet 30 90 24
Top Door 14 3/4 35 3/4
Bottom Door 14 3/4 49 1/4 3/4
U249624 Cabinet 30 96 24
Top Door 14 3/4 41 3/4
Bottom Door 14 3/4 49 1/4 3/4
Utility Pantry

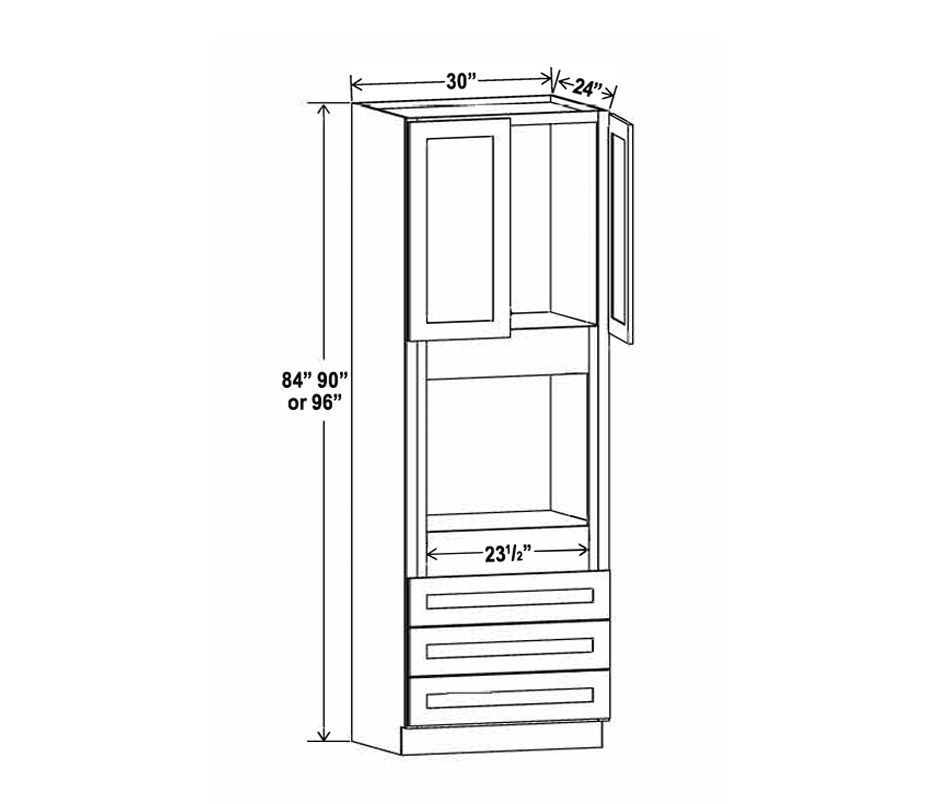

Oven Pantry

30"W

  • 0308424 Opening Dimensions: 24 W x 24 3/8 H
  • 0309024 Opening Dimensions: 24 W x 24 3/8 H
  • 0309624 Opening Dimensions: 24 W x 24 3/8 H
  • Two doors
  • One large open shelf
  • Three bottom drawers
  • Drawers may be removed to accommodate double ovens.
Item Code Parts W H D
0308424 Cabinet 30 84 24
Door 14 3/4 17 3/4
Drawer 29 1/2 7 3/4 3/4
0309024 Cabinet 30 90 24
Door 14 3/4 23 3/4
Drawer 29 1/2 7 3/4 3/4
0309624 Cabinet 30 96 24
Door 14 3/4 29 3/4
Drawer 29 1/2 7 3/4 3/4

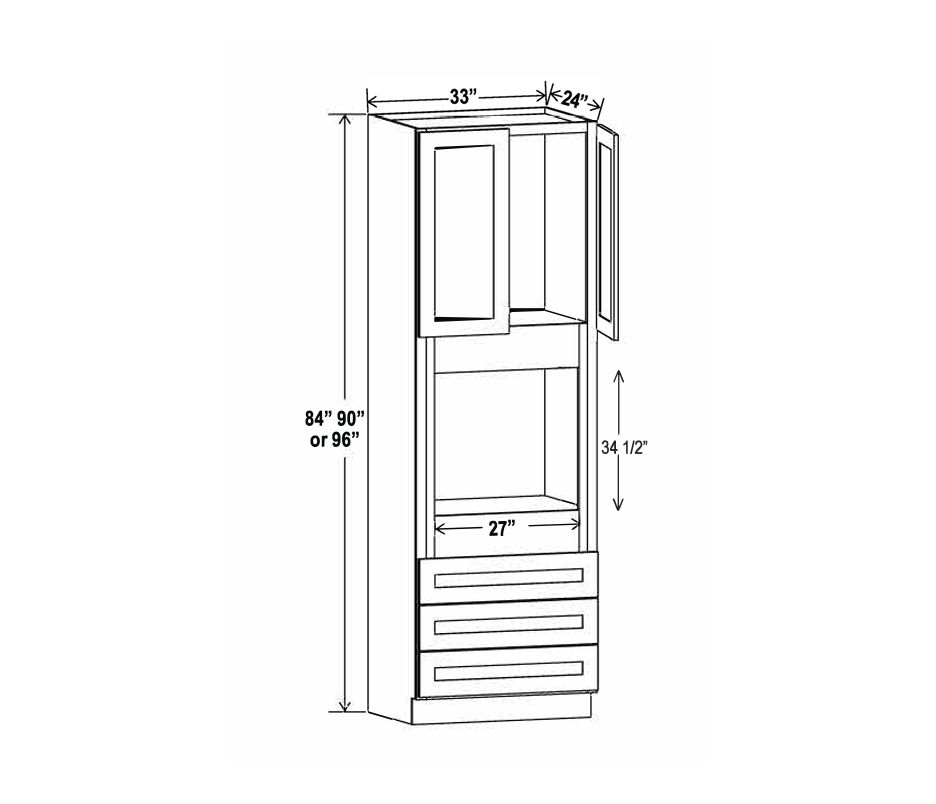

Oven Pantry

33"W

  • 0338424 Opening Dimensions: 27 W x 34 1 /2" H
  • 0339024 Opening Dimensions: 27 W x 34 1 /2" H
  • 0339624 Opening Dimensions: 27 W x 34 1 /2" H
  • Two doors
  • One large open shelf
  • Three bottom drawers
  • Drawers may be removed to accommodate double ovens.
Item Code Parts W H D
0338424 Cabinet 33 84 24
Door 16 1/4 17 3/4
Drawer 32 1/2 7 3/4 3/4
0309024 Cabinet 33 90 24
Door 16 1/4 23 3/4
Drawer 32 1/2 7 3/4 3/4
0309624 Cabinet 33 96 24
Door 16 1/4 29 3/4
Drawer 32 1/2 7 3/4 3/4
Oven Pantry

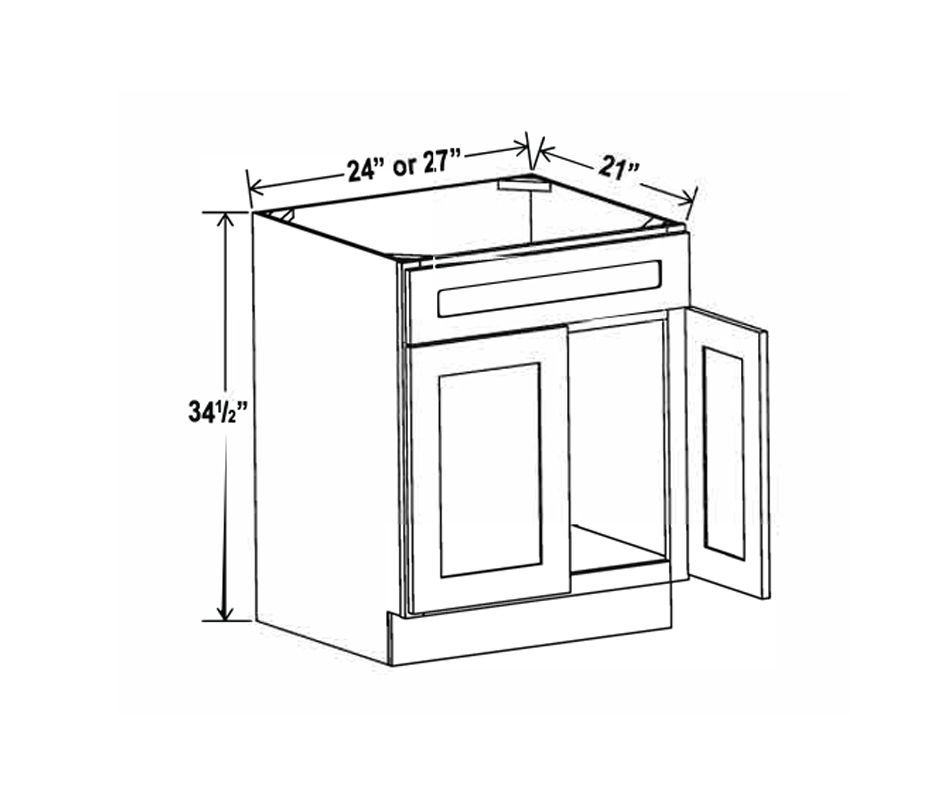

Vanity Sink Base

  • One dummy drawer
Item Code Parts W H D
VS24 Cabinet 24 34 1/2 21
Door 11 3/4 22 1/2 3/4
Drawer 23 1/4 6 1/4 3/4
VS27 Cabinet 27 34 1/2 21
Door 13 1/4 22 1/3 3/4
Drawer 26 1/2 6 1/4 3/4
Vanity Sink Base

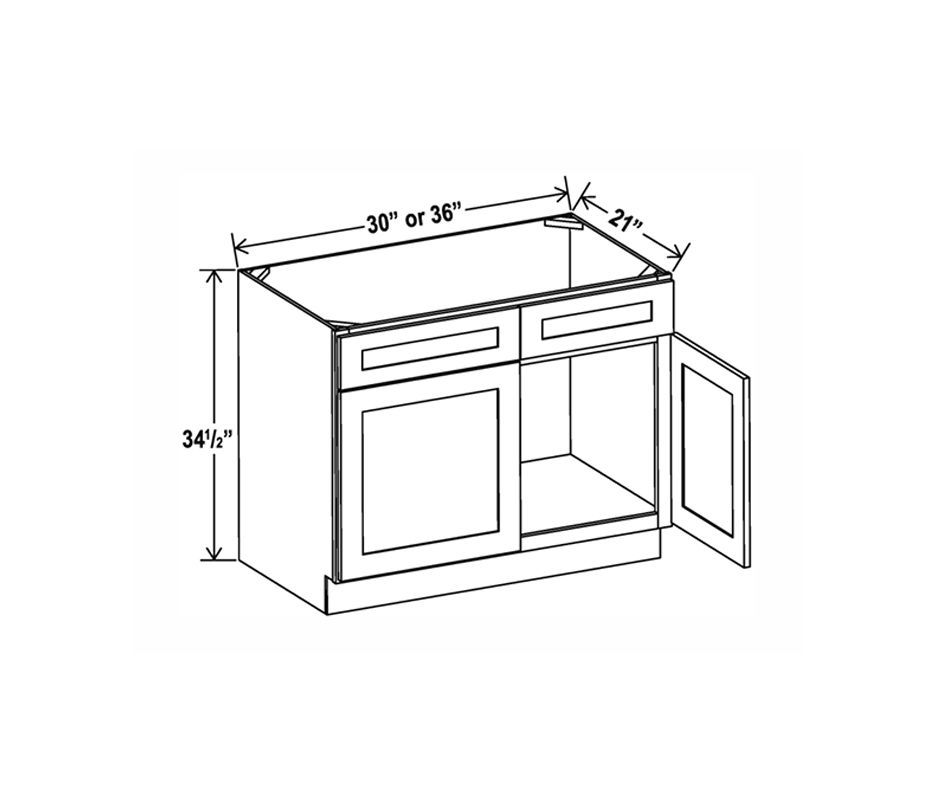

Vanity Sink Base

  • Two dummy drawers
Item Code Parts W H D
VS30 Cabinet 30 34 1/2 21
Door 14 3/4 22 1/2 3/4
Drawer 14 3/4 6 1/4 3/4
VS27 Cabinet 36 34 1/2 21
Door 17 3/4 22 1/2 3/4
Drawer 17 3/4 6 1/4 3/4
Vanity Sink Base

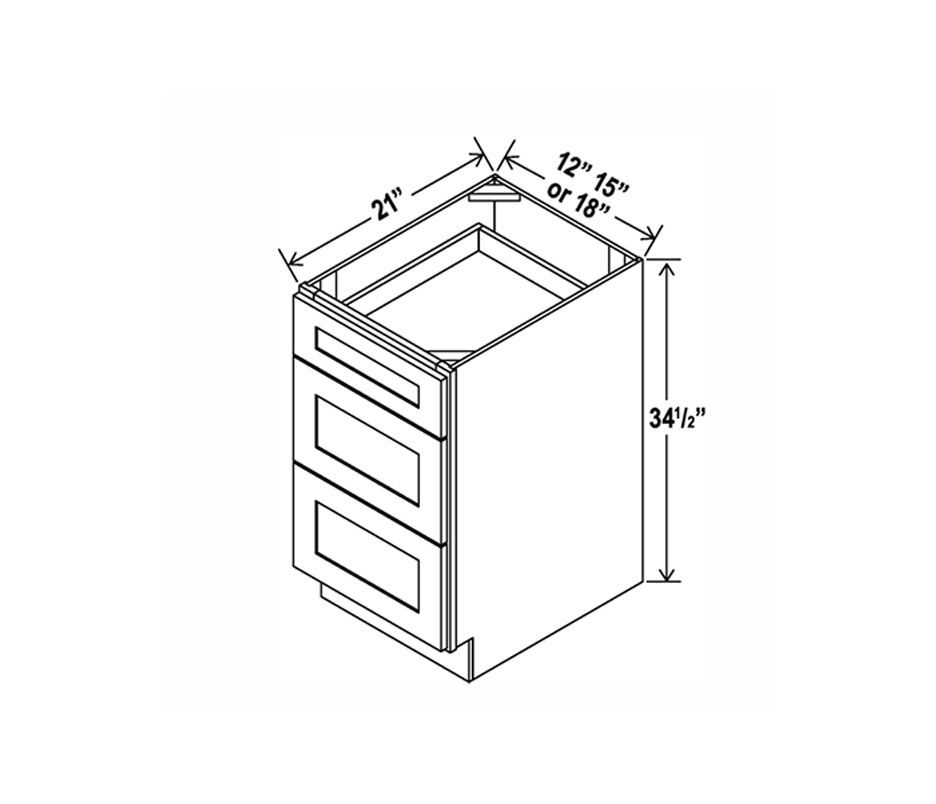

Vanity Drawer Base Cabinet

Item Code Parts W H D
3VDB12 Cabinet 12 34 1/2 21
Top Drawer 11 1/2 6 1/4 3/4
Bottom Drawer 11 1/2 11 1/8 3/4
3VDB15 Cabinet 15 34 1/2 21
Top Drawer 14 1/2 6 1/4 3/4
Bottom Drawer 14 1/2 11 1/8 3/4
3VDB18 Cabinet 18 34 1/2 21
Top Drawer 17 1/2 6 1/4 3/4
Bottom Drawer 17 1/2 11 1/8 3/4
Vanity Drawer Base Cabinet

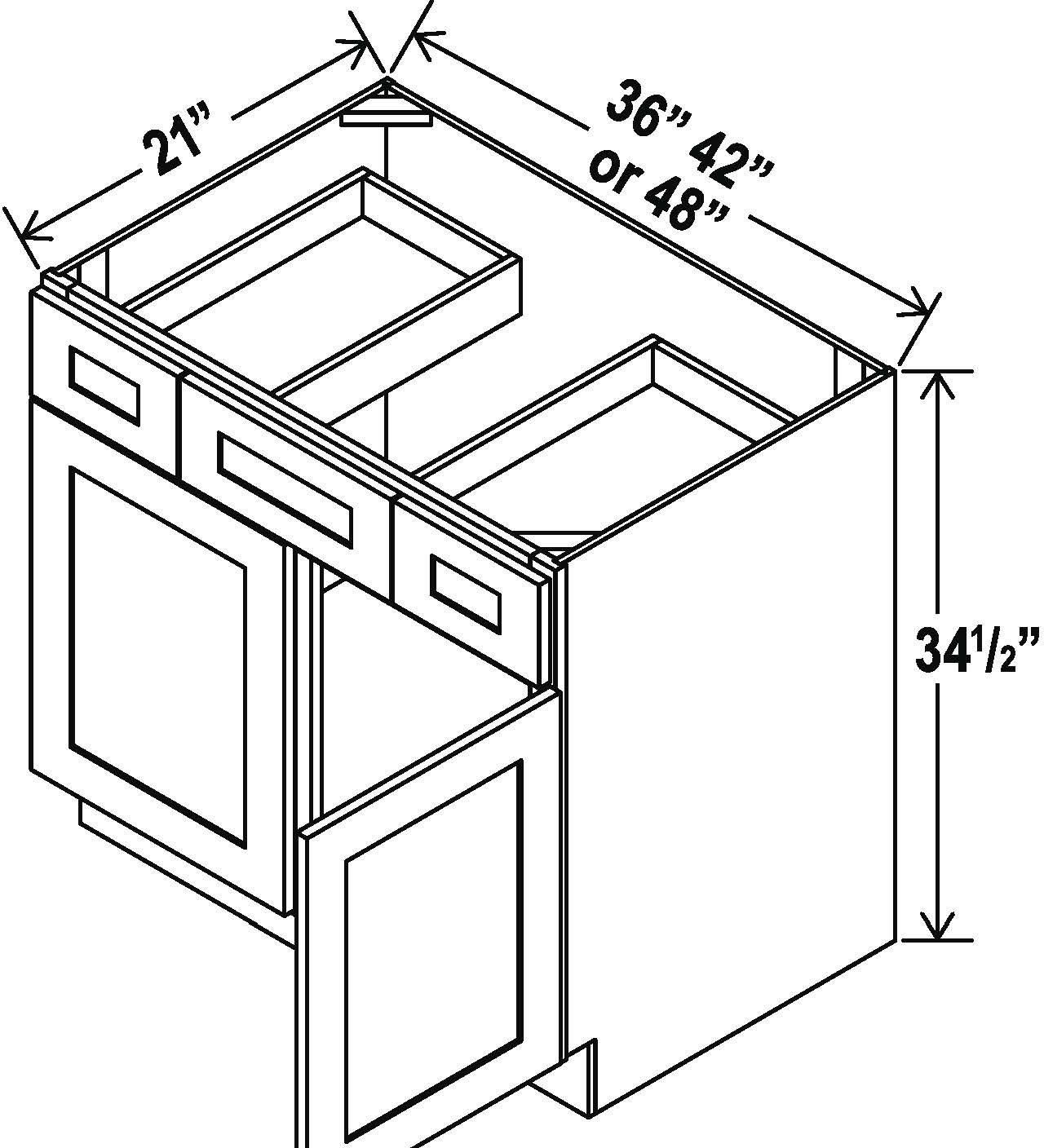

Vanity Combo

Item Code Parts W H D
VSD36 Cabinet 36 34 1/2 21
Door 17 3/4 22 1/2 3/4
Outside Drawer 10 1/4 6 1/4 3/4
Center Drawer 14 1/2 6 1/4 3/4
VSD42 Cabinet 42 34 1/2 21
Door 20 3/4 22 1/2 3/4
Outside Drawer 11 1/2 6 1/4 3/4
Center Drawer 18 6 1/4 3/4
VSD48 Cabinet 48 34 1/2 21
Door 23 3/4 22 1/2 3/4
Outside Drawer 14 1/2 6 1/4 3/4
Center Drawer 18 6 1/4 3/4
Vanity Combo

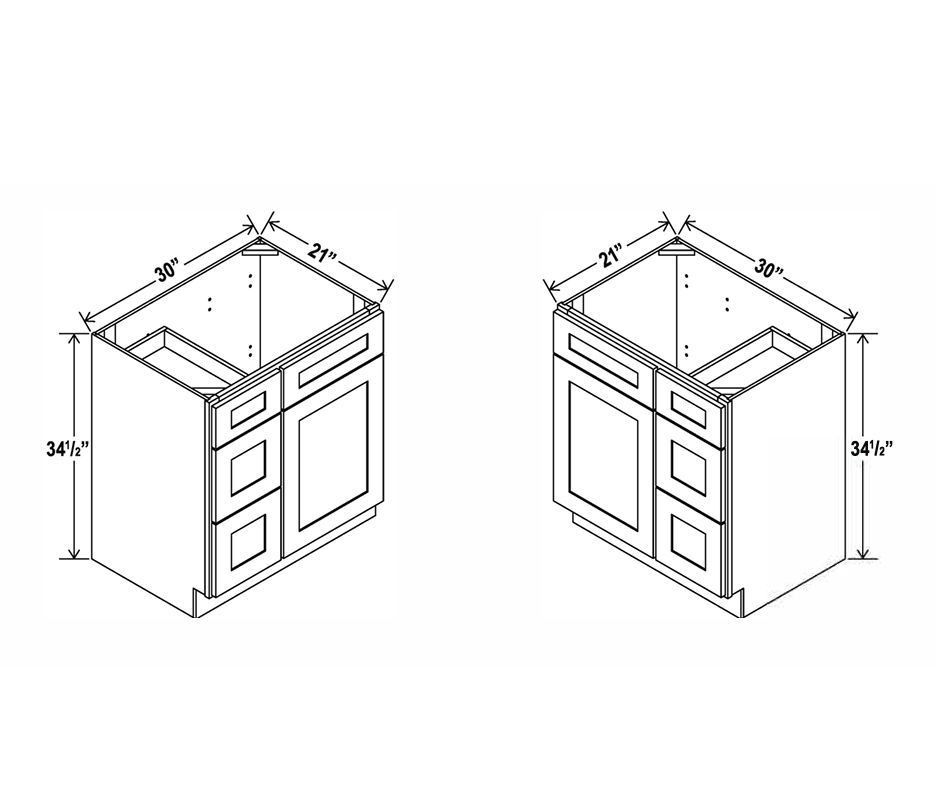

30"W Vanity Combo

  • V3021 DL: 30" combo with drawers on left
  • V3021 DR: 30" combo with drawers on right
Item Code Parts W H D
V3021DL Cabinet 30 34 1/2 21
Door 17 1/2 22 1/2 3/4
Long Drawer 17 1/2 6 1/4 3/4
Top Drawer 11 1/2 6 1/4 3/4
Bottom Drawer 11 1/2 11 1/8 3/4
V3021 DR Cabinet 30 34 1/2 21
Door 17 1/2 22 1/2 3/4
Long Drawer 17 1/2 6 1/4 3/4
Top Drawer 11 1/2 6 1/4 3/4
Bottom Drawer 11 1/2 11 1/8 3/4

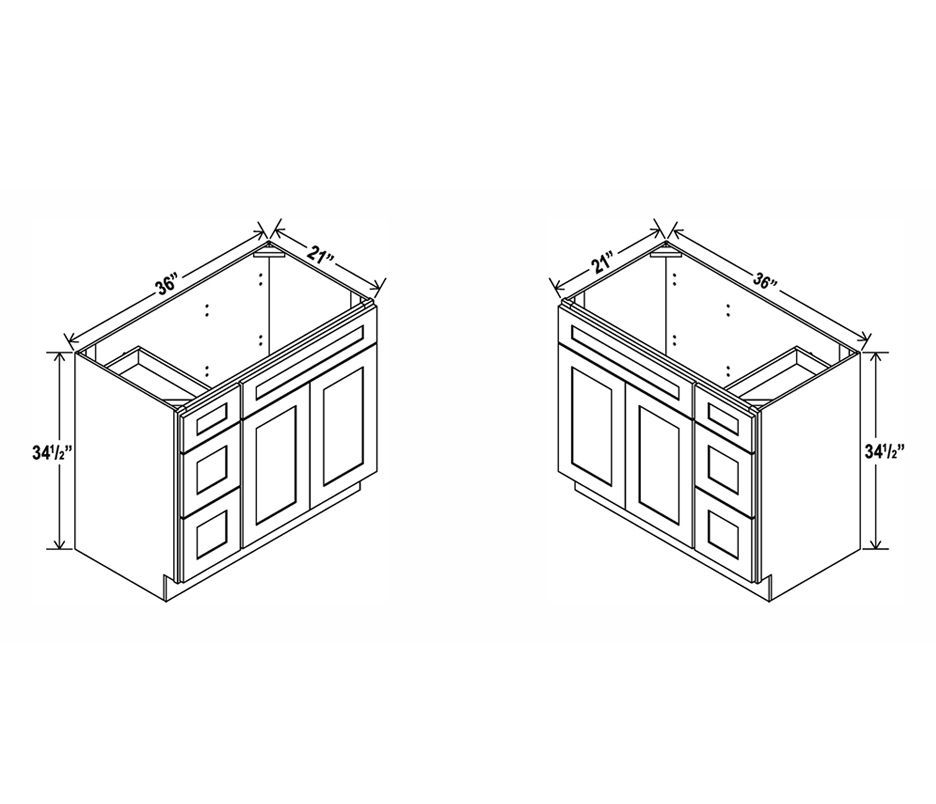

36"W Vanity Combo

  • V3621 DL: 36" combo with drawers on left
  • V3621 DR: 36" combo with drawers on right
Item Code Parts W H D
V3621DL Cabinet 36 34 1/2 21
Door 11 3/4 22 1/2 3/4
Long Drawer 23 1/2 6 1/4 3/4
Top Drawer 11 1/2 6 1/4 3/4
Bottom Drawer 11 1/2 11 1/8 3/4
V3621DR Cabinet 36 34 1/2 21
Door 11 3/4 22 1/2 3/4
Long Drawer 23 1/2 6 1/4 3/4
Top Drawer 11 1/2 6 1/4 3/4
Bottom Drawer 11 1/2 11 1/8 3/4
36

Rope Moulding

Item Code L
ROPE 96
Rope Moulding

 Dentil Moulding

Item Code L
DMTIS 96
Dentil Moulding

Furniture Base

Item Code L
FBM 96
Furniture Base

Cove Crown Moulding

Item Code L
COV 96
Cove Crown Moulding

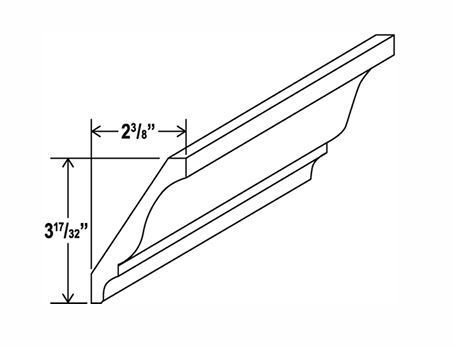

 Decorative Moulding

Item Code L
BCM8(DCM) 96
Decorative Moulding

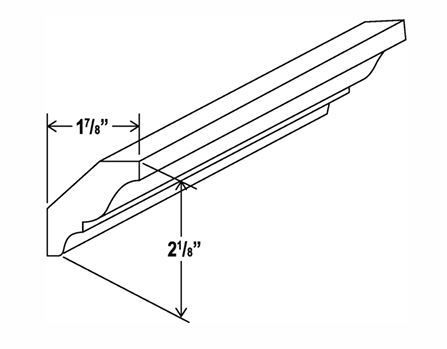

Crown Moulding

Item Code L
CM8 96
Crown Moulding

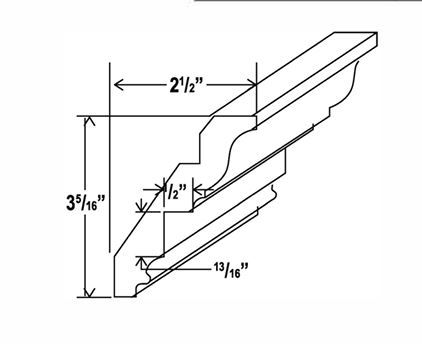

Inset Crown Moulding

Item Code L
RCM4S(LCM) 96
Inset Crown Moulding

Angle Crown Moulding

Item Code L
ACM8 96
Angle Crown Moulding

Angle Light Rail Moulding

Item Code L
ALRM8 96
Angle Light Rail Moulding

Light Rail Moulding

Item Code L
LRM8 96
Light Rail Moulding

 Outside Corner Moulding

Item Code L
OCM8 96
Outside Corner Moulding

Shoe Moulding

Item Code L
SHM 96
Shoe Moulding

Scribe Moulding

Item Code L
SMS(SCR) 96
Scribe Moulding

Batten Moulding

Item Code L
BAM 96
Batten Moulding

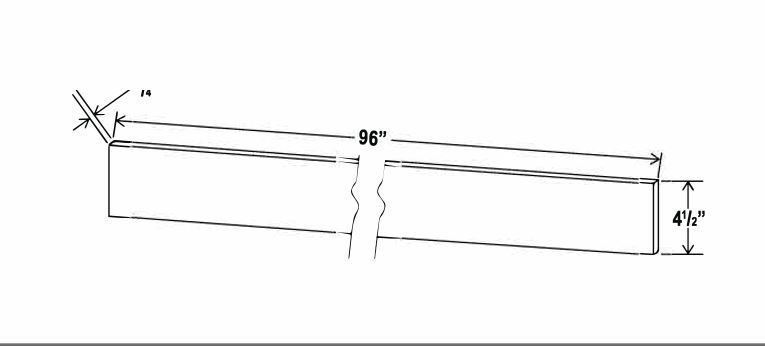

 Toe Kick

Item Code L
TKC 96
Toe Kick

Tall Fluted Filler

Item Code L
FF396 96
Tall Fluted Filler

Tall Filler

Item Code L
F396 96
F696 96
Tall Filler

Filler

Item Code L
F342 96
F642 96
Filler

Finish Plywood Panel

Item Code L
FPV4296 96
Finish Plywood Panel

Tall Skin Veneer Panel

Item Code L
USV2496 96
Tall Skin Veneer Panel

Base Skin Veneer Panel

Item Code L
BSV 34 1/2
Base Skin Veneer Panel

Wall Skin Panel

Item Code L
WSV42 42
Wall Skin Panel

Dishwasher Return Panel

Item Code L
DWR3 34 1/2
Dishwasher Return Panel

Refrigerator End Panel

Item Code L
REPV2496 96
REPV2796 96
Refrigerator End Panel

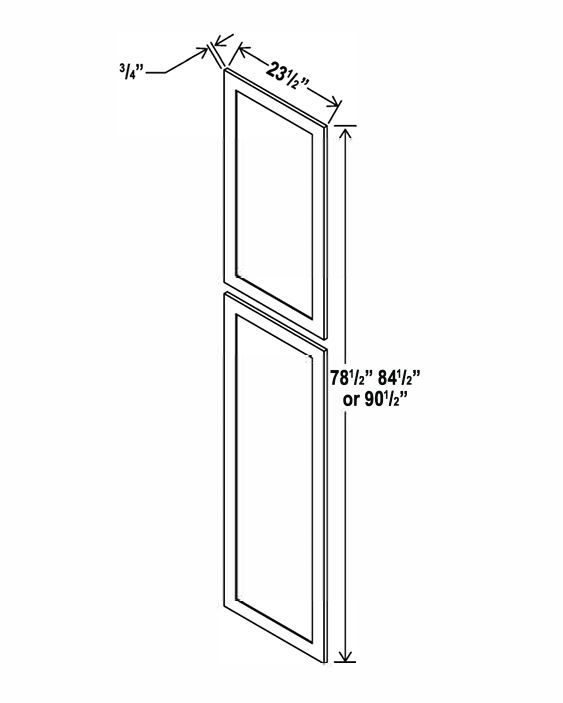

Tall Decorative Door Panel

Item Code L
TDEP2484 78 1/2
TDEP2490 84 1/2
TDEP2496 90 1/2
Tall Decorative Door Panel

Wall Decorative Door Panel

Item Code L
WDEP30 29
WDEP36 35
WDEP42 41
Wall Decorative Door Panel

Base Decorative Door Panel

Item Code L
BDEP 29
Base Decorative Door Panel

Shelf Board

  • Finished on 4 sides to match cabinet
Item Code L
S2496 96
Shelf Board

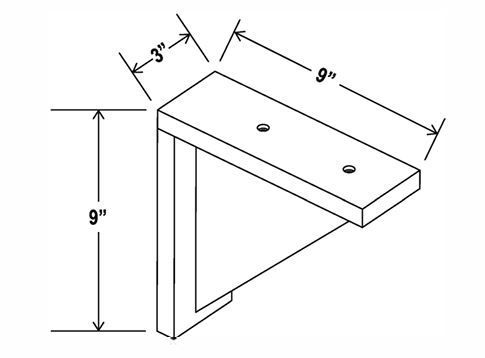

Corbel

Item Code
CB9
Corbel

Corbel

Item Code
CBT
Corbel

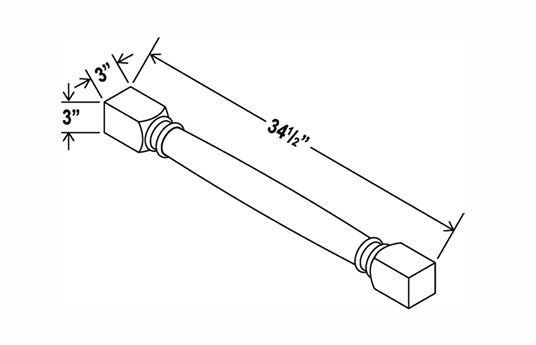

Classic Decorative Leg

Item Code
CLDL
Classic Decorative Leg

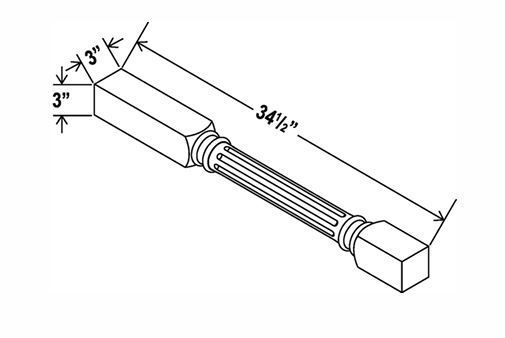

Fluted Decorative Leg

Item Code
FLDL
Fluted Decorative Leg

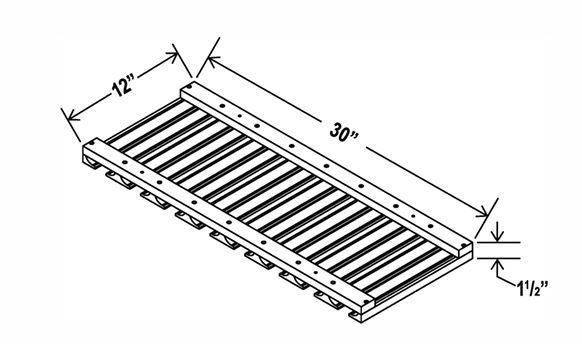

Glass Holder

Item Code
SGH30
Glass Holder

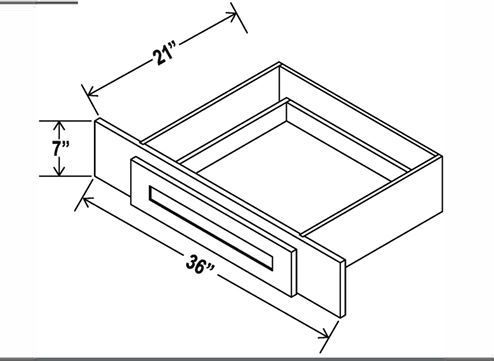

Knee Drawer

Item Code
VKD36
Knee Drawer

Arched Valance

Item Code
VA30
VA36
VA42
VA48
Arched Valance

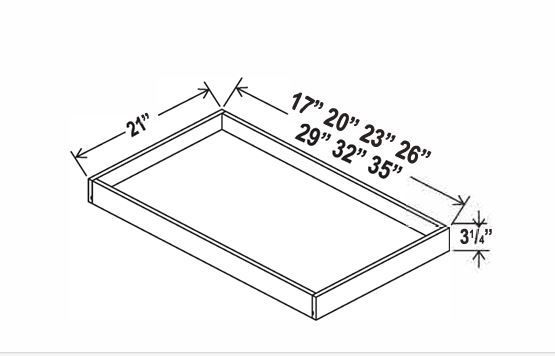

Roll Out Tray

Item Code
RS18
RS21
RS24
RS27
RS30
RS33
RS36
Roll Out Tray

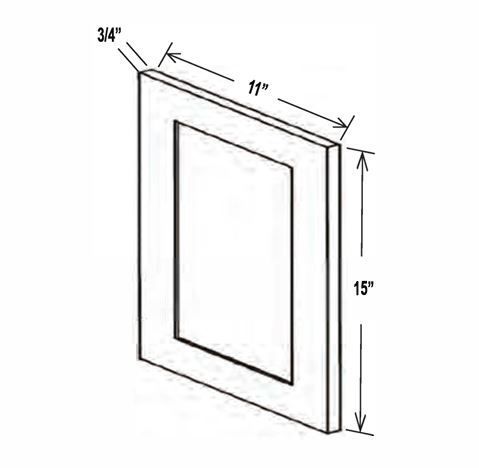

Sample Door

Item Code
SD
Sample Door
Share by:
